Automatic air conditioning control for BMW 5 Series E34 525i (1996)

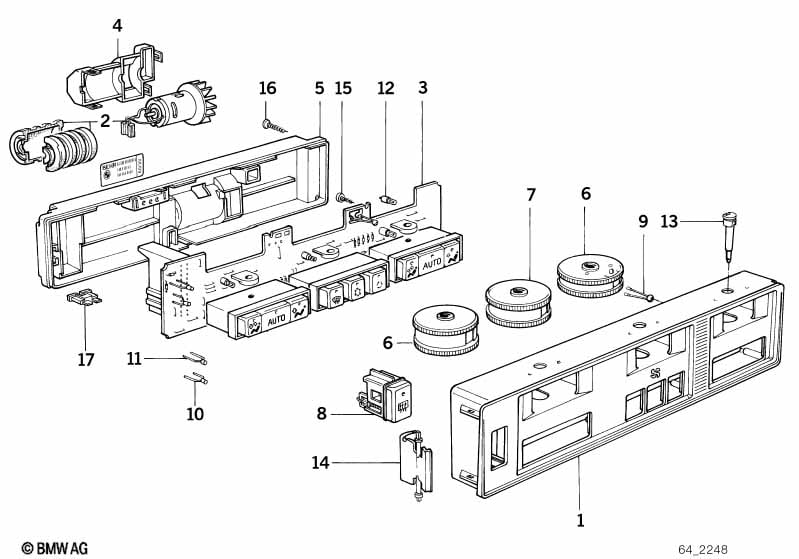

This Automatic air conditioning control technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front plate, contr. auto air conditioner | 1 | 64111390712 | $117.27 | ENDED | Shop at ECS Tuning | ||||
| 02 | Interior temperature sensor fan | 1 | 64118390150 | $117.73 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO HEATER CONTROL 64 11 1 390 627 HEATER CONTROL 64 11 1 390 629 HEATER CONTROL 64 11 9 061 884 HEATER CONTROL 64 11 9 061 885 HEATER CONTROL 64 11 1 390 628 HEATER CONTROL 64 11 9 061 886 |
||||||||||
| 03 | Print.circuit board f aut.air cond.ctrl | 1 | 64111390684 | ENDED | Shop at ECS Tuning | |||||
| ONLY APPLIES TO HEATER CONTROL 64 11 1 390 810 HEATER CONTROL 64 11 1 390 812 HEATER CONTROL 64 11 8 390 170 HEATER CONTROL 64 11 8 390 174 HEATER CONTROL 64 11 1 390 811 HEATER CONTROL 64 11 8 390 172 |
||||||||||
| 03 | Print.circuit board f aut.air cond.ctrl | 1 | 64118390177 | Shop at ECS Tuning | ||||||
| 04 | Cover | 1 | 64111374245 | $3.61 | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 64111390739 | $11.84 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Canada |
L838A=Yes |
|||||||||
| 06 | Rotary switch temperature | 2 | 64111390690 | $41.38 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rotary switch air volume | 1 | 64111390689 | $41.38 | Shop at ECS Tuning | |||||
| 08 | Switch heated rear window | 1 | 64111390697 | $31.92 | Shop at ECS Tuning | |||||
| 09 | Temperature sensor passenger room | 1 | 64111388265 | $33.45 | Shop at ECS Tuning | |||||
| 10 | Light emitting diode | GELB | 2 | 64111368465 | $6.57 | Shop at ECS Tuning | ||||
| 11 | Light emitting diode | GRUEN | 8 | 64111369356 | $6.57 | Shop at ECS Tuning | ||||
| 11 | Light emitting diode | ORANGE | X | 64111382791 | $7.72 | Shop at ECS Tuning | ||||
| 12 | Bulb | ROT | 1 | 64111382790 | $6.32 | ENDED | Shop at ECS Tuning | |||
| 12 | Bulb | WEISS | 2 | 64111388253 | $5.86 | Shop at ECS Tuning | ||||
| 13 | Quick-release axle | 3 | 64111374249 | $12.32 | ENDED | Shop at ECS Tuning | ||||
| 14 | Clamp | 1 | 64111374250 | $5.42 | ENDED | Shop at ECS Tuning | ||||
| 15 | Screw | 30X12 | 4 | 64111391719 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Screw | 4 | 64111378860 | $0.28 | Shop at ECS Tuning | |||||
