Climate capacitor/additional blower for BMW 7 Series E38 730iL (1996)

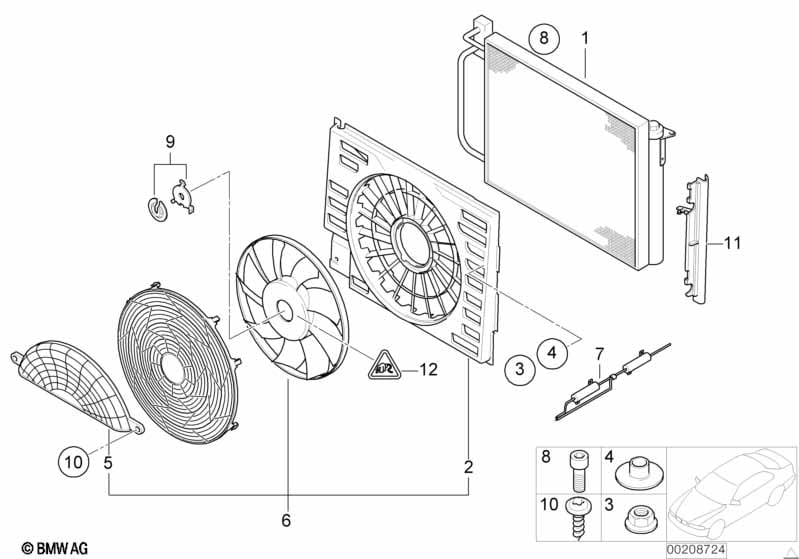

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser | 1 | 09/1994 | 09/1997 | 64538373924 | $540.42 | Shop at ECS Tuning | |||
| 02 | Compression shroud | 1 | 07/1998 | 64546913886 | $182.02 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8 | 4 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Bush | 4 | 64538361938 | $4.40 | Shop at ECS Tuning | |||||
| 05 | Upper protection grid f additional fan | 1 | 64548361937 | $13.65 | Shop at ECS Tuning | |||||
| 06 | Pusher fan | 1 | 09/1995 | 09/1998 | 64548380774 | $510.48 | Shop at ECS Tuning | |||
| 07 | Repair kit resistor | 1 | 09/1995 | 09/1998 | 67328371873 | $65.80 | Shop at ECS Tuning | |||
| 08 | Screw | 1 | 64531704450 | $8.89 | Shop at ECS Tuning | |||||
| 09 | Clip | 1 | 64509071431 | $3.47 | Shop at ECS Tuning | |||||
| 10 | Torx bolt | 3,5X10 | 4 | 51168108077 | $0.34 | ENDED | Shop at ECS Tuning | |||
| 11 | Right compression frame sealing | 1 | 64548387522 | $15.77 | Shop at ECS Tuning | |||||
| 12 | Universal socket housing uncoded | 4 POL. | 1 | 61138367076 | $7.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 | 2,5-4,0MM² | 4 | 61131376206 | $0.98 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
