Housing parts - air conditioning for BMW 3 Series E36 320i (1999)

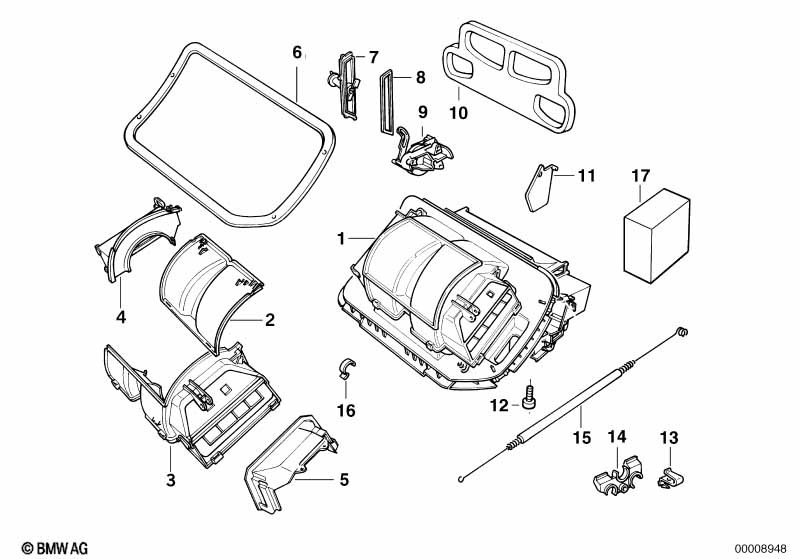

This Housing parts - air conditioning technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Automatic air conditioning |
=Yes |
|||||||||
| 01 | Empty housing f heater/air condit.unit | IHKA | 1 | 03/1995 | 64118362925 | $1062.75 | ENDED | Shop at ECS Tuning | ||
| 02 | Cover | 1 | 09/1994 | 64118390958 | $29.00 | Shop at ECS Tuning | ||||
| 03 | Upper part right | 1 | 09/1994 | 64111393256 | $114.58 | ENDED | Shop at ECS Tuning | |||
| 04 | Upper part left | 1 | 09/1994 | 64111393255 | $54.87 | Shop at ECS Tuning | ||||
| 05 | Covering cap left | 1 | 09/1994 | 64118390291 | $2.82 | Shop at ECS Tuning | ||||
| 05 | Covering cap right | 1 | 09/1994 | 64118390292 | $2.82 | ENDED | Shop at ECS Tuning | |||
| 06 | Sealing frame | 1 | 09/1994 | 64111393254 | $29.33 | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 09/1994 | 64111393488 | $80.09 | Shop at ECS Tuning | ||||
| 08 | Gasket | 1 | 09/1994 | 64118390448 | $3.04 | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
S530A=Yes |
|||||||||
| 09 | Gearbox flap position | 1 | 09/1994 | 64118391298 | Shop at ECS Tuning | |||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 09 | Support | 1 | 09/1994 | 64110004169 | $27.90 | Shop at ECS Tuning | ||||
| 10 | Sealing frame | 1 | 09/1994 | 64111393237 | $26.24 | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 09/1994 | 64111393487 | $3.86 | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning |
S534A=Yes |
|||||||||
| 11 | Bracket, vent flap actuator | 1 | 09/1994 | 64111393372 | $3.97 | ENDED | Shop at ECS Tuning | |||
| 12 | Fillister head screw | 4X10 | X | 09/1994 | 64111386955 | $0.18 | Shop at ECS Tuning | |||
| 13 | Clamp | 1 | 09/1994 | 64111384433 | $0.53 | SI 641091408 | Shop at ECS Tuning | |||
| 14 | Bracket water pipe | 1 | 09/1994 | 64118390699 | $9.76 | Shop at ECS Tuning | ||||
| 15 | Bowden cable | 1 | 09/1994 | 64111393264 | $9.52 | Shop at ECS Tuning | ||||
| 16 | Clamp | 50 MM | X | 09/1994 | 64118390714 | $3.70 | Shop at ECS Tuning | |||
| 17 | Set small parts f air cond.adjust.lever | BEHR | 1 | 09/1994 | 64118362933 | $172.90 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 320i Housing parts - air conditioning?
- This technical diagram illustrates the Housing parts - air conditioning within the Heater and Air Conditioning group for the 3 Series E36 320i produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Empty housing f heater/air condit.unit (Part #64118362925).
- Which models use the hardware listed in this Housing parts - air conditioning?
- The hardware and components featured in the Housing parts - air conditioning are specific to the 3 Series E36 320i produced during 1999. These technical specifications ensure that parts like the Empty housing f heater/air condit.unit (64118362925) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Housing parts - air conditioning assembly?
- Each item in the Housing parts - air conditioning corresponds to the numbered list below the illustration. For the 3 Series E36 320i, you can identify the Empty housing f heater/air condit.unit by locating its position on the schematic, which then links to the official BMW part number 64118362925 for the Heater and Air Conditioning section.
