Heating/air conditioner actuation for BMW Z3 E36 M

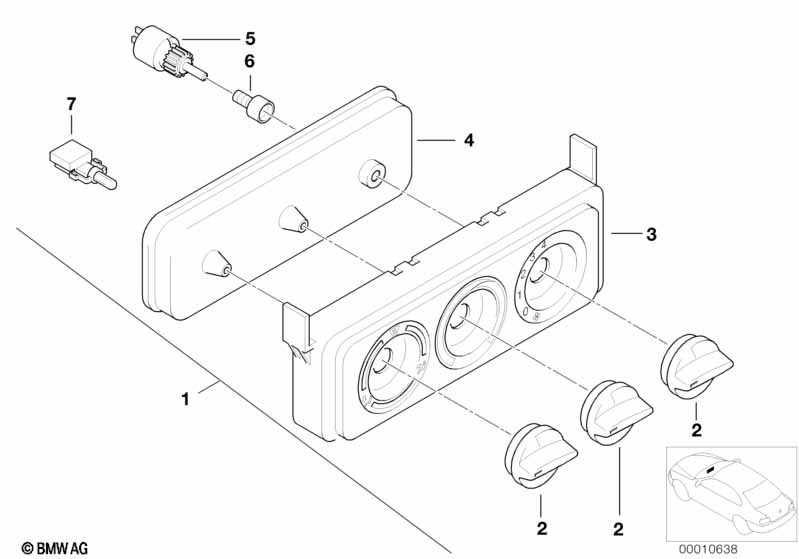

This Heating/air conditioner actuation technical drawing provides a detailed breakdown of the assembly for the Z3 E36 M. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | chrome rings see main section 51, finisher oddments tray |
|||||||||
| 01 | Base plate | 1 | 09/1995 | 64118398937 | $239.77 | Shop at ECS Tuning | ||||
| 02 | Button | SILBER | 1 | 64118380216 | $37.27 | Shop at ECS Tuning | ||||
| 02 | Button | SCHWARZ | 1 | 64118398837 | $7.58 | Shop at ECS Tuning | ||||
| 03 | Panel | 1 | 64118398898 | $57.47 | Shop at ECS Tuning | |||||
| 04 | Base plate | 1 | 64118398937 | $239.77 | Shop at ECS Tuning | |||||
| 05 | Switch blower | 1 | 61311381201 | $28.18 | ENDED | Shop at ECS Tuning | ||||
| 05 | Switch blower | 1 | 61311376908 | $11.62 | ENDED | Shop at ECS Tuning | ||||
| 06 | Trim ring | 1 | 64118362900 | $1.42 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bulb socket with bulb | 1 | 61138353797 | $7.12 | Shop at ECS Tuning | |||||
