Housing parts - air conditioning for BMW Z3 E36 M

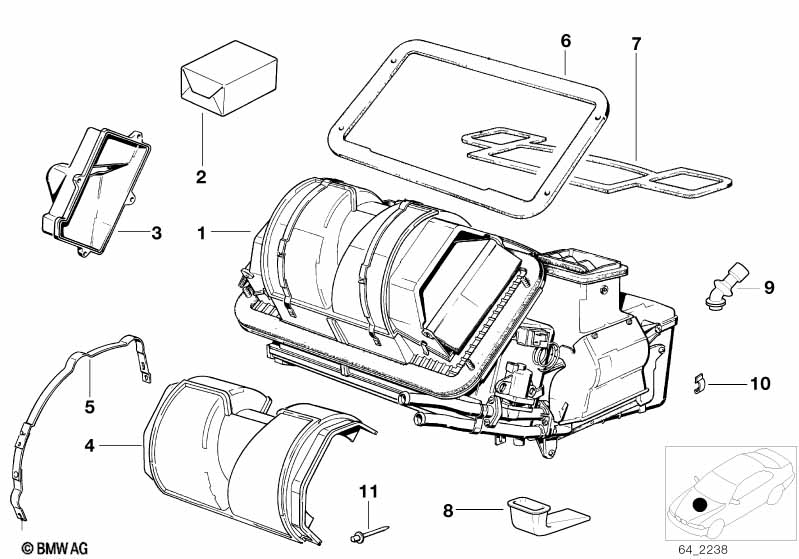

This Housing parts - air conditioning technical drawing provides a detailed breakdown of the assembly for the Z3 E36 M. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing f heater/air condit.unit | 1 | 12/1999 | 64116912251 | $622.42 | ENDED | Shop at ECS Tuning | |||
| 02 | Set of small parts f heater adjust.lever | 1 | 64518398743 | $9.22 | Shop at ECS Tuning | |||||
| 03 | Evaporator cover | 1 | 64111376851 | $17.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber seal | 1500MM | 1 | 64111374109 | $7.15 | Shop at ECS Tuning | ||||
| 04 | Blower housing | 1 | 64111370934 | $13.87 | Shop at ECS Tuning | |||||
| 05 | Tension strap | 2 | 64111370636 | $8.10 | Shop at ECS Tuning | |||||
| 06 | Gasket | 1 | 64111370936 | $28.91 | Shop at ECS Tuning | |||||
| 07 | Gasket | 1 | 64111370937 | $31.16 | Shop at ECS Tuning | |||||
| 08 | Outlet hose | 2 | 51738399500 | $12.53 | Shop at ECS Tuning | |||||
| 09 | Condensation water outlet hose | 2 | 64111370998 | $2.57 | Shop at ECS Tuning | |||||
| 10 | Clamp | X | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
| 11 | Screw | 40X14 | X | 64118391265 | $0.22 | Shop at ECS Tuning | ||||
