Evaporator / Expansion valve for BMW Z3 E36 M

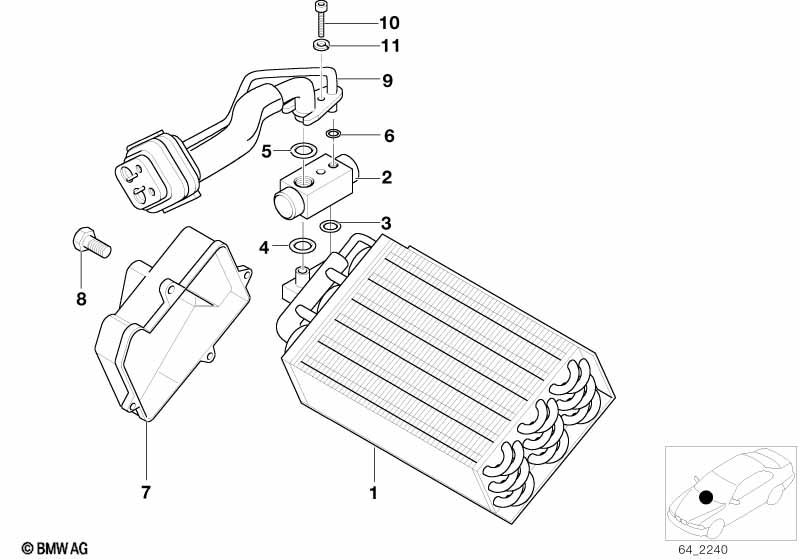

This Evaporator / Expansion valve technical drawing provides a detailed breakdown of the assembly for the Z3 E36 M. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | 1 | 64518398840 | $480.16 | Shop at ECS Tuning | |||||
| 02 | Expansion valve | 1 | 64118384379 | $145.03 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | D=7MM | 1 | 64506904701 | $1.86 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=15MM | 1 | 64506904700 | $1.86 | Shop at ECS Tuning | ||||
| 05 | Gasket ring | D=15,54 MM | 1 | 64508369241 | $1.25 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | D=7 MM | 1 | 64508369240 | $1.95 | Shop at ECS Tuning | ||||
| 07 | Evaporator cover | 1 | 64111376851 | $17.61 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rubber seal | 1500MM | 1 | 64111374109 | $7.15 | Shop at ECS Tuning | ||||
| 08 | Screw | 4 | 64111370949 | $0.38 | Shop at ECS Tuning | |||||
| 09 | Double pipe | 1 | 09/1998 | 64508381190 | $115.95 | Shop at ECS Tuning | ||||
| 10 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Spring washer | 6-ZN | 1 | 07119933231 | $0.09 | Shop at ECS Tuning | ||||
