Automatic air conditioning evaporator for BMW 7 Series E38 740i (1996)

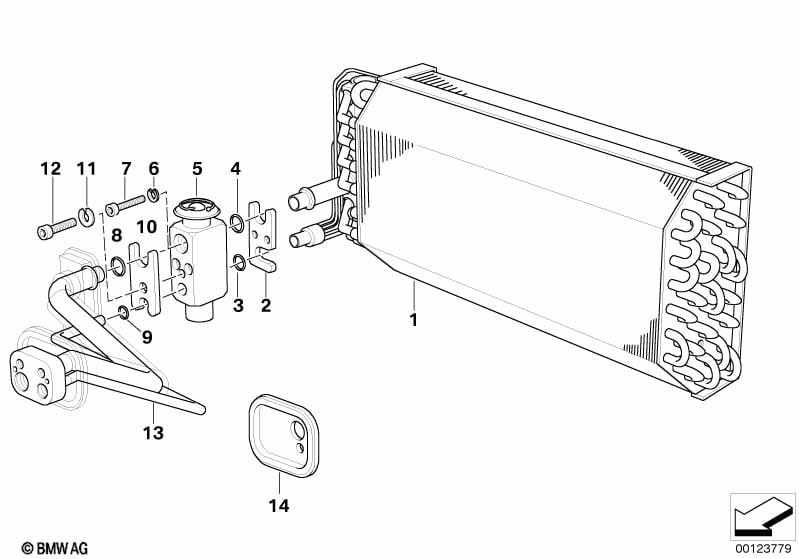

This Automatic air conditioning evaporator technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Evaporator | 1 | 64118372191 | $741.40 | Shop at ECS Tuning | |||||
| 02 | Plate | 1 | 64111380572 | $7.27 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | D=11.1MM | 1 | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | D=14MM | 1 | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 05 | Expansion valve | R12/R134A | 1 | 09/1997 | 64118362851 | $145.03 | Shop at ECS Tuning | |||
| 07 | Fillister head with washer | M5X35 | 2 | 64116910423 | $1.77 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | D=17,17MM | 1 | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | D=7,65MM | 1 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 10 | Plate | 1 | 64111380573 | $8.10 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Fillister-head screw | M8X50-8.8-ZNS3 | 1 | 07119901034 | $1.42 | ENDED | Shop at ECS Tuning | |||
| 11 | Spring washer | 6-ZN | 1 | 07119933231 | $0.09 | Shop at ECS Tuning | ||||
| 12 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Coolant pipe | 1 | 09/1997 | 64118391368 | $107.15 | ENDED | Shop at ECS Tuning | |||
