Air channel for BMW 5 Series E39 528i (2000)

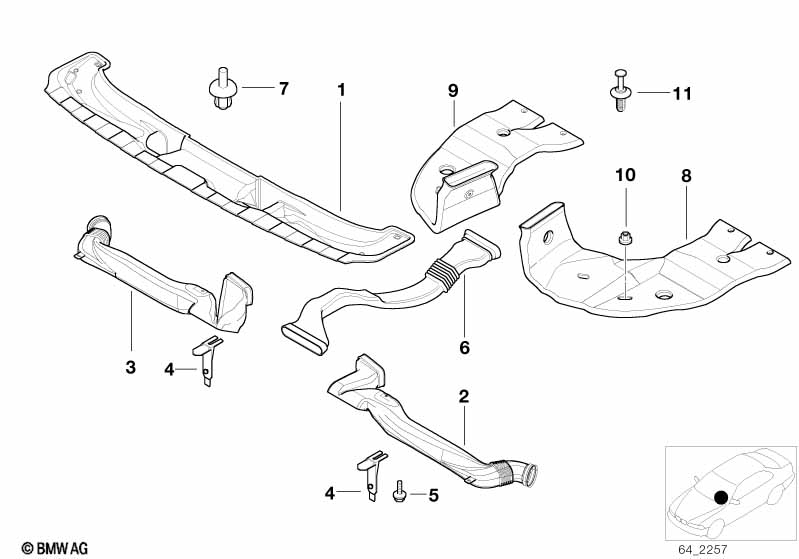

This Air channel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Warm air duct | 1 | 64228159750 | $40.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cold air duct left | 1 | 64228159751 | $7.02 | Shop at ECS Tuning | |||||
| 03 | Cold air duct right | 1 | 64228159752 | $7.19 | Shop at ECS Tuning | |||||
| 04 | Air channel bracket | 2 | 51458159726 | $1.23 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M6X12MM | X | 51458209089 | $0.66 | Shop at ECS Tuning | ||||
| 06 | Rear heater duct | 1 | 09/1997 | 64228234527 | $8.23 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | 1 | 51118108145 | $0.30 | Shop at ECS Tuning | |||||
| 08 | Heater duct rear left | 1 | 64228125971 | $19.07 | Shop at ECS Tuning | |||||
| 09 | Heater duct rear right | 1 | 64228125972 | $19.07 | Shop at ECS Tuning | |||||
| 10 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Air channel?
- This technical diagram illustrates the Air channel within the Heater and Air Conditioning group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Warm air duct (Part #64228159750).
- Which models use the hardware listed in this Air channel?
- The hardware and components featured in the Air channel are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Warm air duct (64228159750) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air channel assembly?
- Each item in the Air channel corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Warm air duct by locating its position on the schematic, which then links to the official BMW part number 64228159750 for the Heater and Air Conditioning section.
