Water valve/Water hose for BMW 5 Series E39 523i (2000)

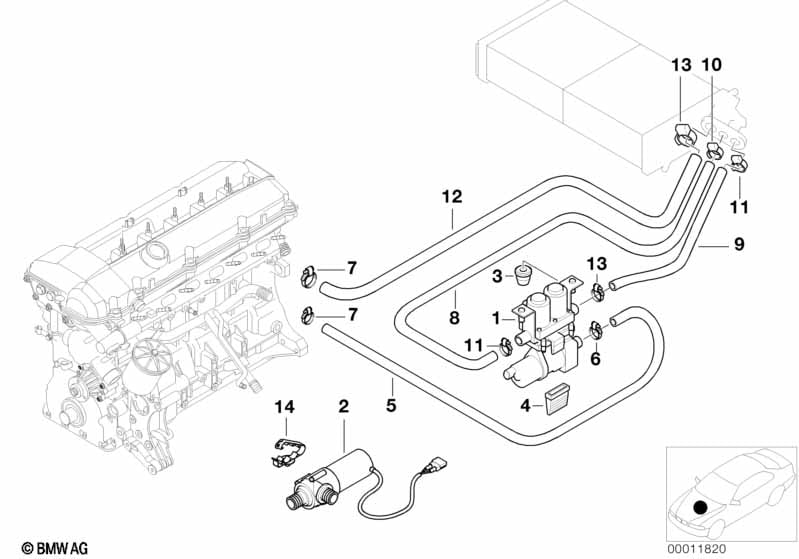

This Water valve/Water hose technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Additional water pump for latent heat accumulator see valve unit latent heat accumulator |
|||||||||
| 01 | Water valve with additional water pump | 1 | 64118374994 | $365.51 | Shop at ECS Tuning | |||||
| For vehicles with Latent heat accumulator |
S538A=Yes |
|||||||||
| 01 | Water valve | 1 | 64128374995 | $167.82 | Shop at ECS Tuning | |||||
| For vehicles with Latent heat accumulator |
S538A=No |
|||||||||
| 02 | Additional water pump f water valve | 1 | 64118375237 | $364.53 | Shop at ECS Tuning | |||||
| 03 | Grommet | 2 | 64126910076 | $1.50 | Shop at ECS Tuning | |||||
| 04 | Rubber Mounting | 1 | 64118391475 | $1.03 | Shop at ECS Tuning | |||||
| 05 | Hose f engine inlet and addit.water pump | 1 | 64218391003 | $17.00 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 08 | Hose f water valve and right radiator | 1 | 64218391017 | $16.16 | Shop at ECS Tuning | |||||
| 09 | Hose f water valve and left radiator | 1 | 64218367929 | $9.77 | Shop at ECS Tuning | |||||
| 10 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Hose f radiator and engine return | 1 | 64218367930 | $7.43 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Hose clamp, inlet | 1 | 64118363051 | $1.42 | Shop at ECS Tuning | |||||
