Climate capacitor/additional blower for BMW 5 Series E39 540i (1998)

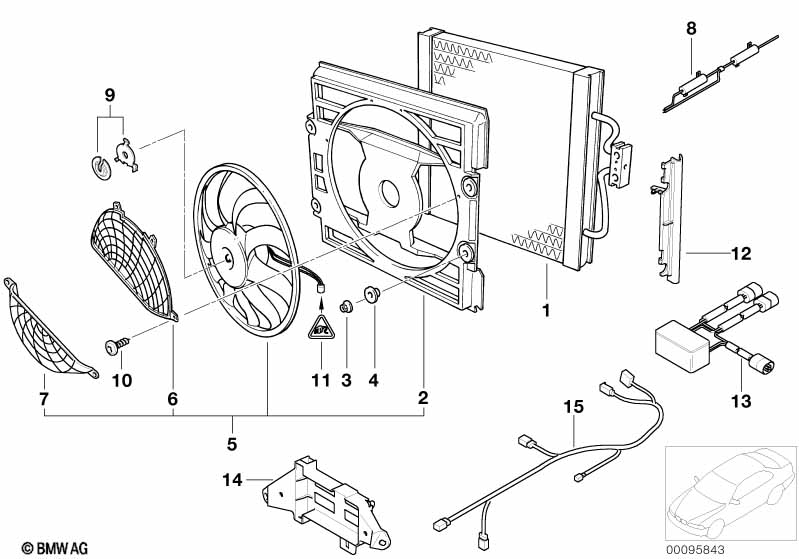

This Climate capacitor/additional blower technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser | 1 | 09/1997 | 64538378438 | $540.42 | Shop at ECS Tuning | ||||
| 02 | Compression shroud | 1 | 05/1998 | 64546913887 | $182.02 | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M8 | 4 | 22316760944 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Bush | 4 | 64538361938 | $4.40 | Shop at ECS Tuning | |||||
| 05 | Pusher fan | 1 | 09/1998 | 64548380780 | $374.55 | Shop at ECS Tuning | ||||
| 06 | Upper protection grid f additional fan | 1 | 64548361937 | $13.65 | Shop at ECS Tuning | |||||
| 07 | Lower protection grid f additional fan | 1 | 64548371347 | $13.65 | Shop at ECS Tuning | |||||
| 08 | Repair kit resistor | 1 | 09/1998 | 67328371873 | $65.80 | Shop at ECS Tuning | ||||
| 09 | Clip | 1 | 64509071431 | $3.47 | Shop at ECS Tuning | |||||
| 10 | Torx bolt | 3,5X10 | 8 | 51168108077 | $0.34 | ENDED | Shop at ECS Tuning | |||
| 11 | Universal socket housing uncoded | 4 POL. | 1 | 61138367076 | $7.03 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular contact 2.5 ELA with cable | 0,75-1,0 MM² | X | 61130007570 | $2.32 | Shop at ECS Tuning | ||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | X | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| 12 | Right compression frame sealing | 1 | 64548387522 | $15.77 | Shop at ECS Tuning | |||||
