Ribbed v-belt / tensioning device for BMW 7 Series E38 725tds (2000)

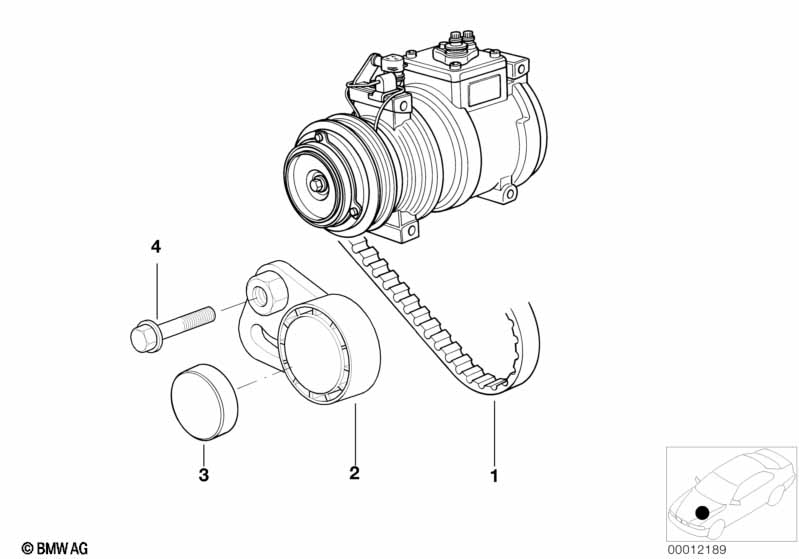

This Ribbed v-belt / tensioning device technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ribbed v-belt | 4PK X 781 | 1 | 64552246732 | $18.70 | Shop at ECS Tuning | ||||
| 02 | Adjusting pulley | 1 | 64552245584 | $46.27 | Shop at ECS Tuning | |||||
| 03 | Protection cap adjusting pulley | 1 | 11281727159 | $2.37 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 725tds Ribbed v-belt / tensioning device?
- This technical diagram illustrates the Ribbed v-belt / tensioning device within the Heater and Air Conditioning group for the 7 Series E38 725tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Ribbed v-belt (Part #64552246732).
- Which models use the hardware listed in this Ribbed v-belt / tensioning device?
- The hardware and components featured in the Ribbed v-belt / tensioning device are specific to the 7 Series E38 725tds produced during 2000. These technical specifications ensure that parts like the Ribbed v-belt (64552246732) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ribbed v-belt / tensioning device assembly?
- Each item in the Ribbed v-belt / tensioning device corresponds to the numbered list below the illustration. For the 7 Series E38 725tds, you can identify the Ribbed v-belt by locating its position on the schematic, which then links to the official BMW part number 64552246732 for the Heater and Air Conditioning section.
