Latent heat accumulator water valves for BMW 5 Series E39 528i (2000)

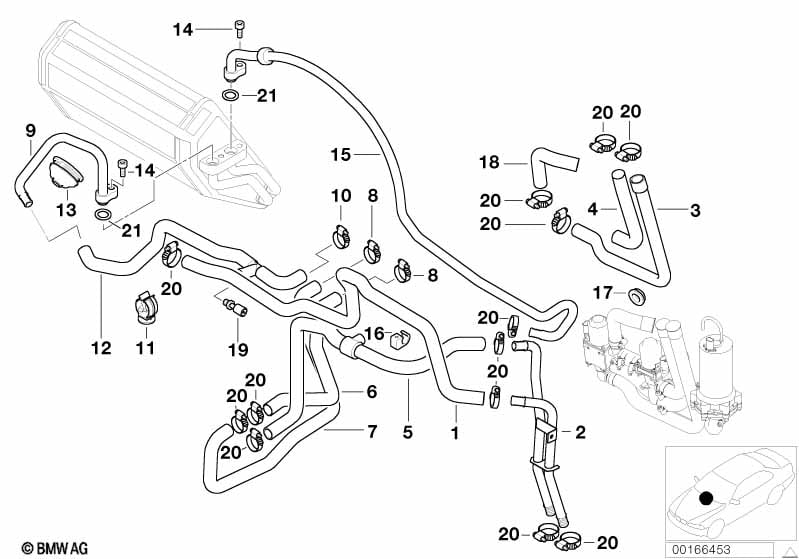

This Latent heat accumulator water valves technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose, inlet | 1 | 09/1998 | 64128380579 | Shop at ECS Tuning | |||||
| 02 | Double pipe 1 | 1 | 64126916537 | $69.62 | Shop at ECS Tuning | |||||
| 03 | Hose f shut-off valve and double pipe 1 | 1 | 64218368579 | $9.88 | Shop at ECS Tuning | |||||
| 04 | Hose f addit.water pump/shut-off valave | 1 | 64218364473 | $12.89 | Shop at ECS Tuning | |||||
| 05 | Hose f double pipe and water valve | 1 | 64218378951 | Shop at ECS Tuning | ||||||
| 06 | Hose f water valve and left radiator | 1 | 64218367929 | $9.77 | Shop at ECS Tuning | |||||
| 07 | Hose f water valve and right radiator | 1 | 64218391017 | $16.16 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Return pipe f latent heat accumulator | 1 | 11/1997 | 64128377380 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 11 | Hose clamp | 1 | 64128381344 | $3.56 | Shop at ECS Tuning | |||||
| 12 | Return hose | 1 | 09/1998 | 64128380578 | ENDED | Shop at ECS Tuning | ||||
| 13 | Grommet f latent heat accum.return pipe | 1 | 64128368351 | ENDED | Shop at ECS Tuning | |||||
| 14 | Fillister-head screw | M8X25-8.8 ZN | 2 | 02/2003 | 07119919978 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 14 | ISA screw | M8X25-10.9-ZNS3 | 2 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 15 | Inlet pipe f latent heat accumulator | 1 | 09/1999 | 64126901786 | Shop at ECS Tuning | |||||
| 16 | Tubing support | 3 | 64128369930 | Shop at ECS Tuning | ||||||
| 17 | Grommet f latent heat accumul.inlet pipe | 1 | 64128368350 | ENDED | Shop at ECS Tuning | |||||
| 18 | Hose f double pipe 1 and change-ov.valve | 1 | 03/1997 | 64218376157 | Shop at ECS Tuning | |||||
| 19 | Temp. sensor f latent heat accumulat. | 1 | 03/1997 | 64128376556 | Shop at ECS Tuning | |||||
| 20 | Hose clamp | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 21 | O-ring | 2 | 64128371121 | $0.47 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Inlet pipe f latent heat accumulator | 2 | 64128364464 | ENDED, +core | Shop at ECS Tuning | |||||
