Latent heat accumulator for BMW 5 Series E39 523i (2000)

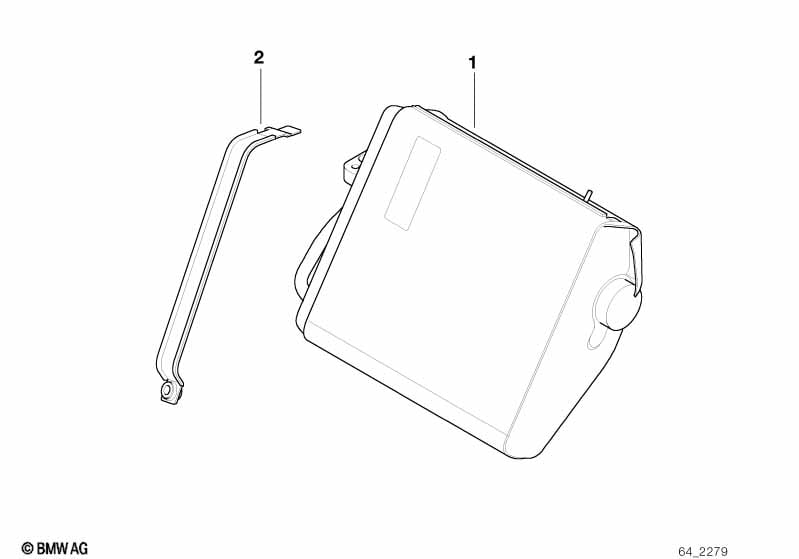

This Latent heat accumulator technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Latent heat accumulator | 1 | 11/1997 | 09/2000 | 64128383258 | ENDED | Shop at ECS Tuning | |||
| 02 | Latent heat accumulator support | 1 | 64128369259 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 523i Latent heat accumulator?
- This technical diagram illustrates the Latent heat accumulator within the Heater and Air Conditioning group for the 5 Series E39 523i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Latent heat accumulator (Part #64128383258).
- Which models use the hardware listed in this Latent heat accumulator?
- The hardware and components featured in the Latent heat accumulator are specific to the 5 Series E39 523i produced during 2000. These technical specifications ensure that parts like the Latent heat accumulator (64128383258) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Latent heat accumulator assembly?
- Each item in the Latent heat accumulator corresponds to the numbered list below the illustration. For the 5 Series E39 523i, you can identify the Latent heat accumulator by locating its position on the schematic, which then links to the official BMW part number 64128383258 for the Heater and Air Conditioning section.
