Independent heating water valves for BMW 5 Series E39 528i (2000)

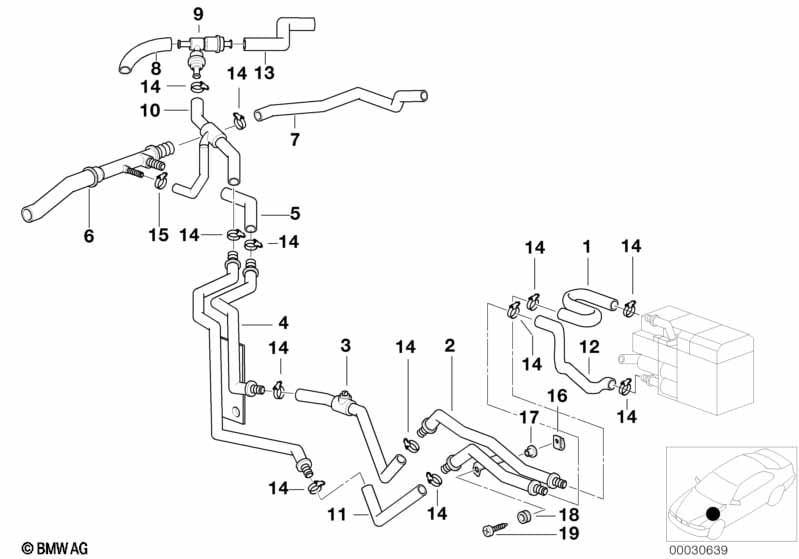

This Independent heating water valves technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose f additional heater and double pipe | 1 | 64218362555 | +core | Shop at ECS Tuning | |||||
| 02 | Double pipe 1 | 1 | 64126916537 | $69.62 | Shop at ECS Tuning | |||||
| 03 | Hose f double pipe 1 and double pipe 2 | 1 | 64218363927 | Shop at ECS Tuning | ||||||
| 04 | Double Pipe 2 | 1 | 64128369427 | Shop at ECS Tuning | ||||||
| 05 | Water hose | 1 | 64218379344 | Shop at ECS Tuning | ||||||
| 06 | Hose, inlet | 1 | 64218363928 | +core | Shop at ECS Tuning | |||||
| 07 | Hose f engine inlet and water valve | 1 | 64218383222 | Shop at ECS Tuning | ||||||
| 08 | Hose | 1 | 64218363864 | Shop at ECS Tuning | ||||||
| 09 | Double check valve | 1 | 64128379872 | $70.87 | Shop at ECS Tuning | |||||
| 10 | Water hose | 1 | 64218369423 | Shop at ECS Tuning | ||||||
| 11 | Hose f double pipe 2 and double pipe 1 | 1 | 64218363380 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hose f double pipe and additional heater | 1 | 64218362556 | +core | Shop at ECS Tuning | |||||
| 13 | Water hose | 1 | 64218363863 | Shop at ECS Tuning | ||||||
| 14 | Hose clamp | L16-30 | X | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 15 | Hose clamp | L12-15 | X | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 16 | Expanding nut | ST 6.3 | 1 | 51718259474 | Shop at ECS Tuning | |||||
| 17 | Bush | 1 | 64128375279 | Shop at ECS Tuning | ||||||
| 18 | Grommet | 1 | 64128374551 | $1.98 | Shop at ECS Tuning | |||||
| 19 | Fillister head screw | 1 | 64128259473 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
