Installing set additional water pump for BMW 3 Series E36 325tds (1998)

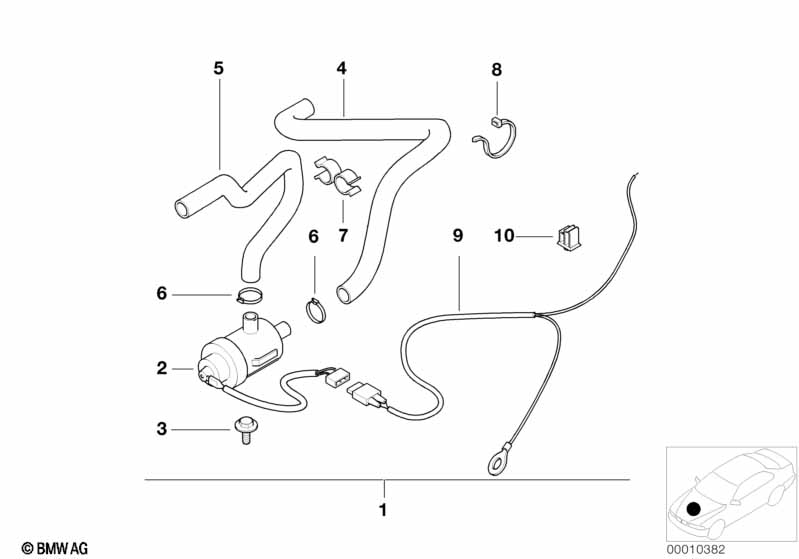

This Installing set additional water pump technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set additional water pump | SERVICE | 1 | 64119070479 | ENDED, SI 640896127 | Shop at ECS Tuning | ||||
| 02 | Additional water pump | 1 | 64118390090 | $163.38 | ENDED | Shop at ECS Tuning | ||||
| 02 | Additional water pump | 1 | 64118390063 | $131.88 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Hose f radiator and addit:water pump | 1 | 64218372923 | ENDED, +core | Shop at ECS Tuning | |||||
| 05 | Hose f ADD.WATER PUMP,engine return | 1 | 64218372925 | +core | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Cable tie | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Wiring additional water pump | 1 | 61128375285 | ENDED | Shop at ECS Tuning | |||||
| 10 | Bracket, plug connection black | 1 | 61131378908 | $0.87 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
- +core = plus core charge (possibility of a return of the old part)
