RP A/C compressor for BMW 3 Series E30 M3 (1990)

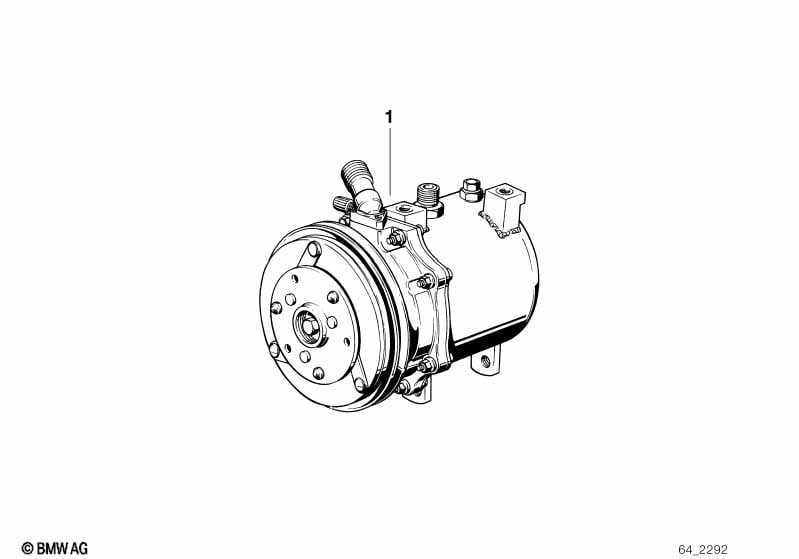

This RP A/C compressor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO COOLANT R134A | ||||||||||
| 01 | Air conditioning compressor | R134A | 1 | 64528385713 | $799.24 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO COOLANT R12 | ||||||||||
| 01 | Air conditioning compressor | R134A | 1 | 64528385713 | $799.24 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Climate compressor supporting bracket | 1 | 82399404494 | $204.34 | Shop at ECS Tuning | |||||
| -- | Retrofit kit R12 -> R134A | 1 | 82319067394 | $175.14 | ENDED | Shop at ECS Tuning | ||||
| -- | Wiring magnetic clutch | 1 | 64521386224 | $17.47 | Shop at ECS Tuning | |||||
| -- | Connecting bracket intake side | 1 | 64528379783 | $159.05 | Shop at ECS Tuning | |||||
| -- | Connecting bracket pressure side | 1 | 64528379784 | $159.05 | Shop at ECS Tuning | |||||
