Magnetic clutch for BMW 3 Series E36 318is (1998)

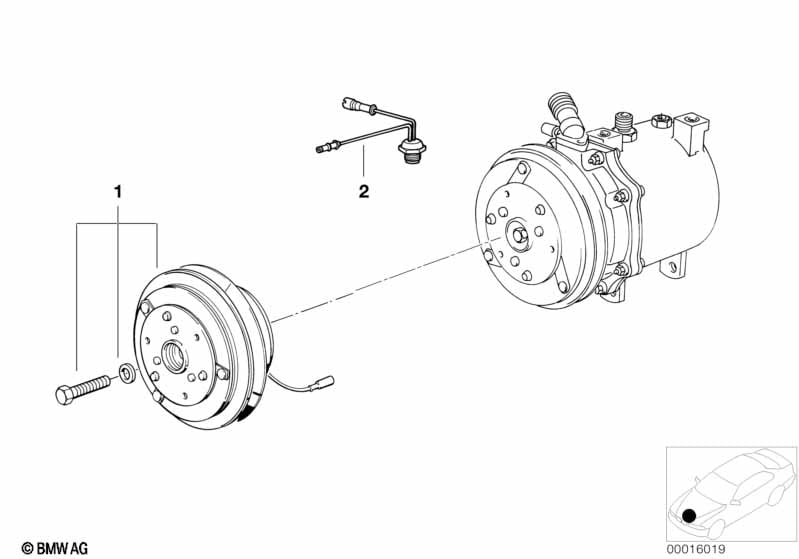

This Magnetic clutch technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| ONLY APPLIES TO COMPRESSOR SEIKO / FER | ||||||||||
| 01 | Magnetic clutch | 1 | 09/1993 | 64528369417 | $392.60 | ENDED, +core | Shop at ECS Tuning | |||
| ONLY APPLIES TO COMPRESSOR DENSO / HISCHIER |
||||||||||
| 01 | Magnetic clutch | 1 | 64528353032 | $392.60 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COMPRESSOR SEIKO / FER | ||||||||||
| 02 | Temperature switch | 1 | 64528390940 | $70.80 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
