Housing parts automatic air conditioning for BMW 5 Series E39 528i (2000)

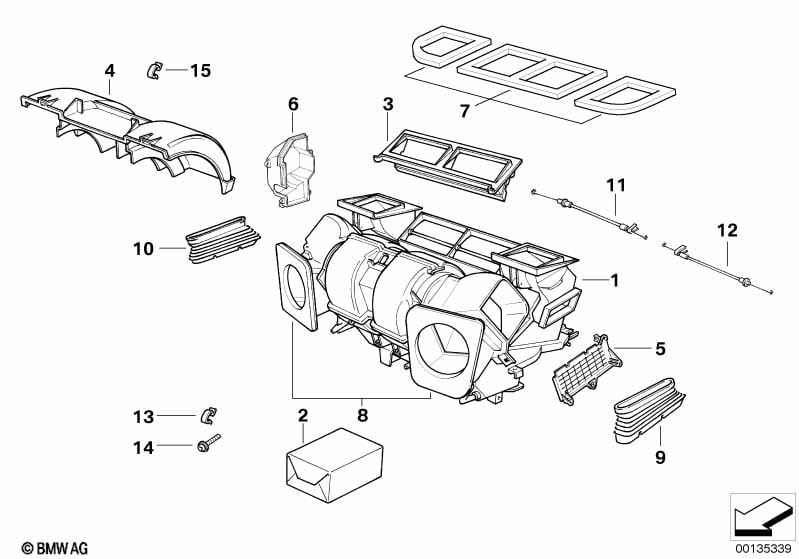

This Housing parts automatic air conditioning technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing f heater/air condit.unit | 1 | 03/2000 | 64118385566 | $590.77 | ENDED | Shop at ECS Tuning | |||
| 02 | Set of small parts adjust.lever | SIEMENS/VALEO | 1 | 64118363780 | $125.82 | Shop at ECS Tuning | ||||
| 03 | Air channel | 1 | 06/1999 | 64118385561 | $53.83 | Shop at ECS Tuning | ||||
| 04 | Covr blower | 1 | 03/2000 | 64118385555 | $19.44 | Shop at ECS Tuning | ||||
| 05 | Heater radiator cover | 1 | 64118363783 | $8.32 | Shop at ECS Tuning | |||||
| 06 | Evaporator cover | 1 | 03/2000 | 64118385548 | $21.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Sealing frame | 1 | 64118363800 | $19.13 | Shop at ECS Tuning | |||||
| 08 | Gasket, fresh air connection | 1 | 64118363801 | $33.04 | Shop at ECS Tuning | |||||
| 09 | Rear left heater duct grommet | 1 | 64118391127 | $4.42 | Shop at ECS Tuning | |||||
| 10 | Rear right heater duct grommet | 1 | 64118391128 | $4.42 | Shop at ECS Tuning | |||||
| 11 | Bowden cable recircul.,fresh and ram air | 1 | 03/2000 | 64118385557 | $15.58 | Shop at ECS Tuning | ||||
| 12 | Bowden cable recircul.,fresh and ram air | 1 | 03/2000 | 64118385557 | $15.58 | Shop at ECS Tuning | ||||
| 13 | Clamp | X | 64111370938 | $0.38 | Shop at ECS Tuning | |||||
| 14 | Screw | X | 64118391918 | $0.32 | Shop at ECS Tuning | |||||
| 15 | Clamp | X | 64111373567 | $4.02 | Shop at ECS Tuning |
