Drying container/small parts for BMW 3 Series E30 325e (1987)

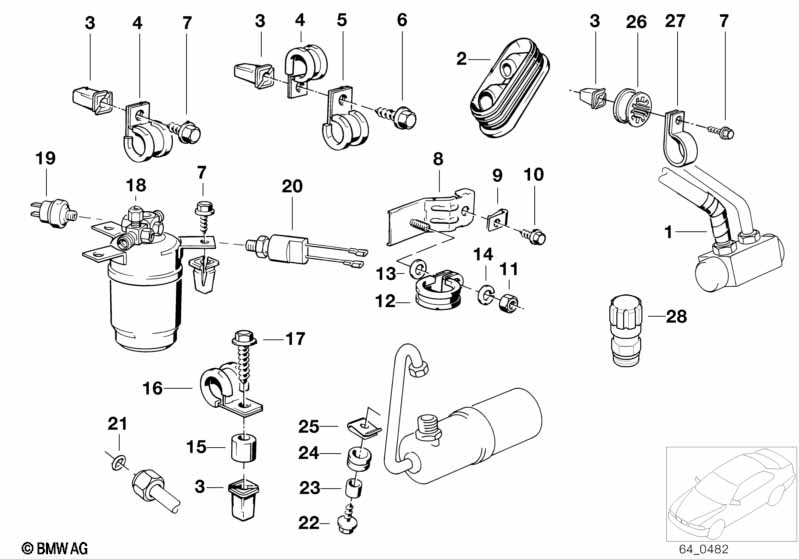

This Drying container/small parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Insulating | X | 64501352059 | ENDED | Shop at ECS Tuning | |||||
| 02 | Rubber grommet | 1 | 64531372609 | $4.82 | Shop at ECS Tuning | |||||
| 03 | Expanding nut | ST 6.3 | X | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Clamp | D=10/6,4 | 2 | 12141305028 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Clamp | D=16/6,4 | 1 | 12427840406 | $1.52 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X25-C-Z2 | X | 07119916973 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 06 | Hi-lo screw | 4,9X19 | X | 64501380494 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Hex head screw | ST6,3X19-C-Z1 | X | 07119916970 | $0.30 | Shop at ECS Tuning | ||||
| 07 | Hi-lo screw | 4,9X19 | X | 64501380494 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 64501372610 | $2.73 | ENDED | Shop at ECS Tuning | ||||
| 09 | Body nut | B6,3-6 | 1 | 16111152613 | $0.35 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST6,3X16-C-Z1 | X | 07119916965 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Hi-lo screw | 4,9X19 | X | 64501380494 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Self-locking hex nut | M6-10 ZN | 1 | 02/1994 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Hose clamp | 1 | 64531372613 | $1.54 | ENDED | Shop at ECS Tuning | ||||
| 13 | Washer | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 14 | Spring washer | B6 | 1 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Base | 1 | 17111150170 | $0.05 | Shop at ECS Tuning | |||||
| 16 | Clamp | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 17 | Hex head screw | ST6,3X50-C | X | 07119916842 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 17 | Hi-lo screw | 4,9X40 | X | 64501380496 | $1.27 | Shop at ECS Tuning | ||||
| 18 | Drying container | R12/R134A | 1 | 64538391025 | $221.09 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Safety pressure switch | R12/R134A | 1 | 64538390971 | $76.13 | Shop at ECS Tuning | ||||
| -- | Plug terminal black | SCHWARZ | 1 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| 19 | Safety pressure switch | R12/R134A | 1 | 64531390070 | $111.38 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Drying container | R12/R134A | 1 | 64538391025 | $221.09 | Shop at ECS Tuning | ||||
| -- | Plug terminal black | SCHWARZ | 1 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| 20 | Safety pressure switch | 1 | 09/1989 | 64531386971 | $69.07 | ENDED | Shop at ECS Tuning | |||
| 20 | Safety pressure switch | R12/R134A | 1 | 64538390971 | $76.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Drying container | R12/R134A | 1 | 64538391025 | $221.09 | Shop at ECS Tuning | ||||
| -- | Plug terminal black | SCHWARZ | 1 | 61131378400 | $1.40 | Shop at ECS Tuning | ||||
| 21 | Gasket ring | D=11.1MM | X | 05/1995 | 64508390602 | $1.49 | Shop at ECS Tuning | |||
| 21 | Gasket ring | D=7,65MM | X | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 21 | Gasket ring | D=11.1MM | X | 64508390602 | $1.49 | Shop at ECS Tuning | ||||
| 21 | Gasket ring | D=14MM | X | 64508390603 | $1.49 | Shop at ECS Tuning | ||||
| 21 | Gasket ring | D=17,17MM | X | 64508390604 | $2.02 | Shop at ECS Tuning | ||||
| 21 | Gasket ring | D=6.8 R12/R134A | X | 64508390605 | $2.51 | Shop at ECS Tuning | ||||
| 22 | Hex head screw | ST4,8X22-C-Z2 | 2 | 07119916944 | $0.25 | Shop at ECS Tuning | ||||
| 23 | Bush | 2 | 31421236241 | $0.92 | ENDED | Shop at ECS Tuning | ||||
| 24 | Rubber grommet | 2 | 07147267586 | Shop at ECS Tuning | ||||||
| 25 | Body nut | ST 4,8-4-ZNS3 | 2 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 28 | Cap | 2 | 64531363569 | $2.82 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COOLANT R134A SUCTION PIPE |
||||||||||
| 28 | Valve insert, suction line | R134A | 1 | 64509177579 | $10.87 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO COOLANT R134A PRESSURE HOSE ASSY |
||||||||||
| 28 | Valve insert, pressure line | R134A | 1 | 08/2003 | 64538391215 | $9.32 | ENDED | Shop at ECS Tuning | ||
| 28 | Valve insert, pressure line | R134A | 1 | 64509177577 | $10.87 | Shop at ECS Tuning | ||||
