Pusher fan and mounting parts for BMW Z3 E36 M

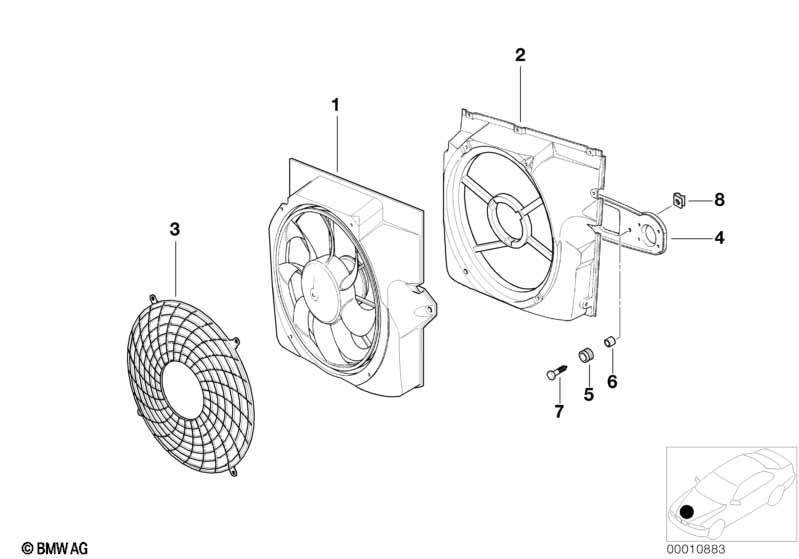

This Pusher fan and mounting parts technical drawing provides a detailed breakdown of the assembly for the Z3 E36 M. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pusher fan | 1 | 64546905617 | $348.67 | Shop at ECS Tuning | |||||
| 02 | Compression shroud | 1 | 64546905616 | $69.19 | Shop at ECS Tuning | |||||
| 03 | Protection grid f additional fan | 1 | 64542228434 | $28.08 | Shop at ECS Tuning | |||||
| 05 | Grommet | 2 | 64538391408 | $0.81 | Shop at ECS Tuning | |||||
| 06 | Bush | 2 | 64538368101 | $1.56 | Shop at ECS Tuning | |||||
| 07 | Hex head screw | ST4,8X22-C-Z2 | 2 | 07119916944 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST4,8-13-ZNS3 | 2 | 07129904223 | $0.11 | Shop at ECS Tuning |
