Air condit.condenser and mounting parts for BMW 3 Series E36 328i (1998)

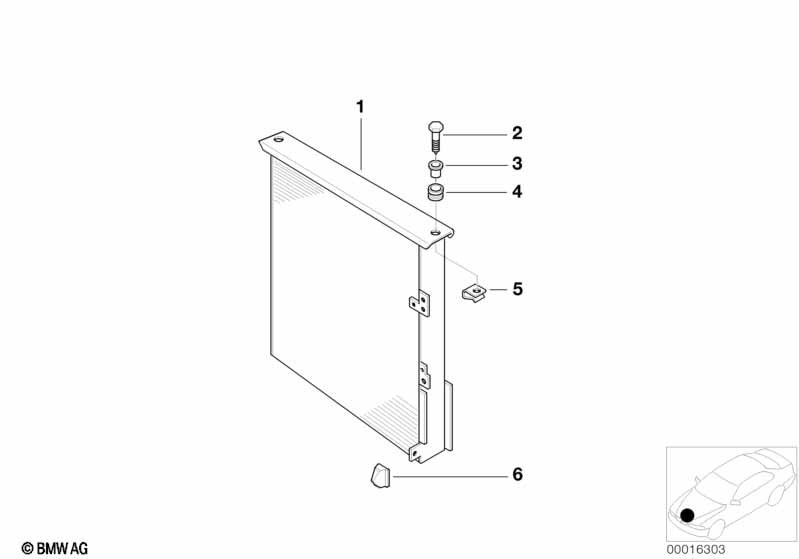

This Air condit.condenser and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Illustration not valid for retrofit air conditioning Economic. For parts of air conditioning Economic see illustration "Air conditioning Economic, single parts II" |
|||||||||
| 01 | Condenser air conditioning | 1 | 09/1992 | 64538373004 | $529.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Sheet metal screw | 6,3 X 26 | 2 | 09/1992 | 64538373922 | $0.58 | Shop at ECS Tuning | |||
| -- | Hex head screw | ST6,3X16-C-ZN | 2 | 09/1992 | 07119916822 | $0.20 | Shop at ECS Tuning | |||
| 02 | Hex head screw | ST6,3X45-C-Z2 | 2 | 09/1992 | 07119916848 | $0.54 | Shop at ECS Tuning | |||
| 03 | Spacer sleeve | 2 | 09/1992 | 64538353083 | $4.63 | Shop at ECS Tuning | ||||
| 04 | Grommet | 2 | 09/1992 | 64538353084 | $3.00 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST6,3-1-ZNS3 | 2 | 09/1992 | 07129904231 | Shop at ECS Tuning | ||||
| 06 | Grommet | 2 | 09/1992 | 64538391412 | $5.37 | Shop at ECS Tuning | ||||
