Pusher fan and mounting parts for BMW 3 Series E36 M3 (1998)

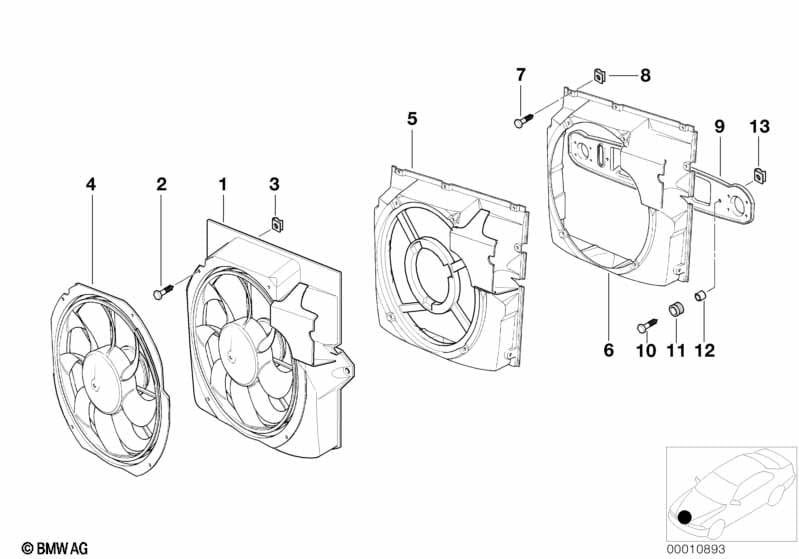

This Pusher fan and mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 01 | Pusher fan | 1 | 10/1993 | 64548391317 | $399.57 | Shop at ECS Tuning | ||||
| COMPRISES COMPRESSION FRAME |
||||||||||
| 02 | Hex head screw | ST4,8X19-C-Z2 | 4 | 09/1992 | 07119916949 | $0.25 | Shop at ECS Tuning | |||
| 03 | C-clip nut | 4 | 09/1992 | 07146955207 | $0.29 | Shop at ECS Tuning | ||||
| 05 | Compression shroud | 1 | 10/1993 | 64548367784 | $69.19 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO SIEMENS | ||||||||||
| 07 | Hex head screw | ST4,8X16-ZNS3 | 4 | 09/1992 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 08 | Body nut | ST4,8-13-ZNS3 | 4 | 09/1992 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 09 | Straight front cross member | 1 | 10/1993 | 41138132178 | $67.89 | Shop at ECS Tuning | ||||
| 10 | Sheet metal screw | 6,3 X 26 | 4 | 09/1992 | 64538373922 | $0.58 | Shop at ECS Tuning | |||
| 11 | Grommet | 2 | 09/1992 | 64538391408 | $0.81 | Shop at ECS Tuning | ||||
| 12 | Bush | 2 | 09/1992 | 64538368101 | $1.56 | Shop at ECS Tuning | ||||
| 13 | Body nut | ST6,3-2-ZNS3 | 4 | 09/1992 | 07129904232 | $0.16 | Shop at ECS Tuning | |||
