Air outlet for BMW 3 Series E36 318is (1995)

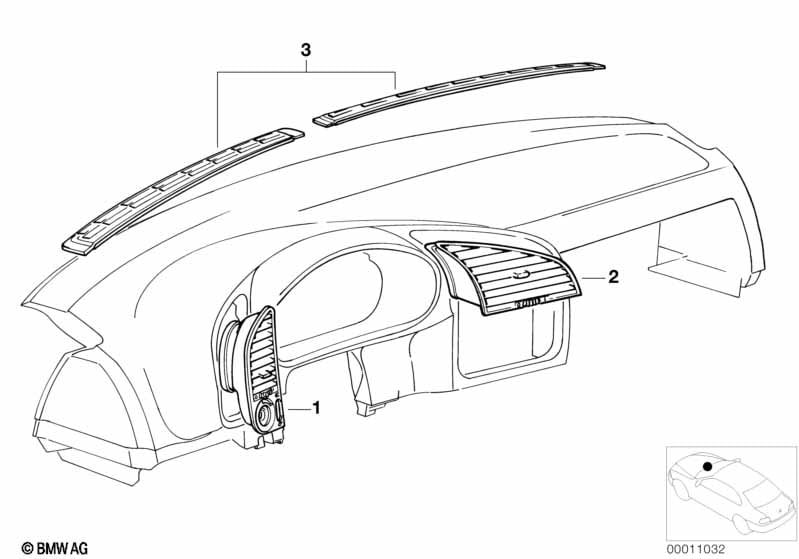

This Air outlet technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fresh air grille, left | 1 | 09/1993 | 64221387061 | $59.18 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Fresh air grille center | 1 | 09/1994 | 64228363533 | $100.13 | Shop at ECS Tuning | ||||
| 03 | Covering defroster nozzle left | SCHWARZ | 1 | 09/1993 | 64228132321 | $14.72 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering defroster nozzle right | SCHWARZ | 1 | 09/1993 | 64228132322 | $14.72 | Shop at ECS Tuning | |||
| 03 | Covering defroster nozzle left | SILBERGR.DUNKEL | 1 | 09/1993 | 64228132323 | $12.28 | Shop at ECS Tuning | |||
| 03 | Covering defroster nozzle right | SILBERGR.DUNKEL | 1 | 09/1993 | 64228132324 | $12.28 | Shop at ECS Tuning | |||
| 03 | Covering defroster nozzle left | ULTRAMARIN | 1 | 09/1993 | 64228132325 | $9.95 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering defroster nozzle right | ULTRAMARIN | 1 | 09/1993 | 64228132326 | $12.28 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering defroster nozzle left | PERGAM.DUNKEL | 1 | 09/1993 | 64228132327 | $9.95 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering defroster nozzle right | PERGAM.DUNKEL | 1 | 09/1993 | 64228132328 | $12.28 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering defroster nozzle left | BRASIL | 1 | 09/1993 | 64228132335 | $12.28 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering defroster nozzle right | BRASIL | 1 | 09/1993 | 64228132336 | $9.95 | ENDED | Shop at ECS Tuning | ||
| 03 | Covering defroster nozzle left | GRAU | 1 | 09/1993 | 64228173067 | $12.28 | Shop at ECS Tuning | |||
| 03 | Covering defroster nozzle right | GRAU | 1 | 09/1993 | 64228173068 | $12.28 | Shop at ECS Tuning | |||
| 03 | Covering defroster nozzle left | BEIGE | 1 | 09/1993 | 64228173069 | $12.28 | Shop at ECS Tuning | |||
| 03 | Covering defroster nozzle right | BEIGE | 1 | 09/1993 | 64228173070 | $12.28 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318is Air outlet?
- This technical diagram illustrates the Air outlet within the Heater and Air Conditioning group for the 3 Series E36 318is produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Fresh air grille, left (Part #64221387061).
- Which models use the hardware listed in this Air outlet?
- The hardware and components featured in the Air outlet are specific to the 3 Series E36 318is produced during 1995. These technical specifications ensure that parts like the Fresh air grille, left (64221387061) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air outlet assembly?
- Each item in the Air outlet corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Fresh air grille, left by locating its position on the schematic, which then links to the official BMW part number 64221387061 for the Heater and Air Conditioning section.
