Coolant lines for BMW 3 Series E46 318i (2003)

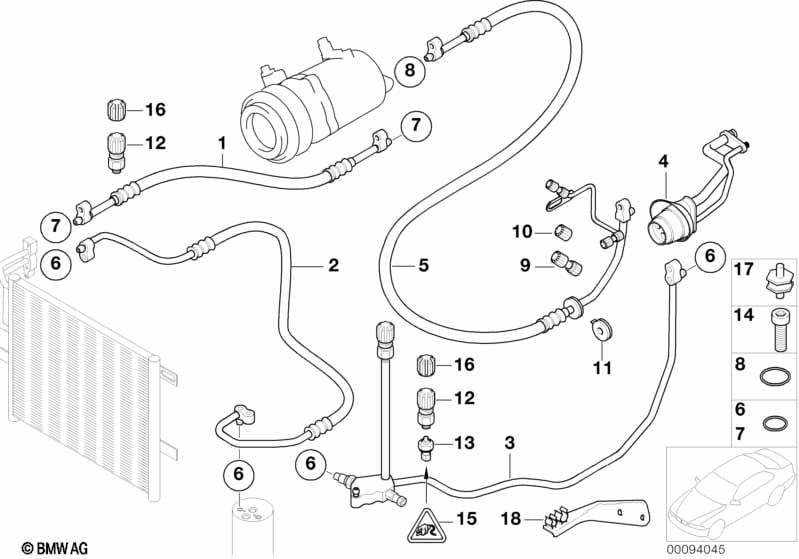

This Coolant lines technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pressure hose assy compressor-condenser | 1 | 64536946354 | $145.83 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Rubber buffer | X | 61623413381 | $4.35 | Shop at ECS Tuning | |||||
| 02 | Condenser-dryer pressure hose assy | 1 | 64536904013 | $63.95 | Shop at ECS Tuning | |||||
| 03 | Dryer-evaporator pressure hose assy | 1 | 09/1999 | 64536909448 | Shop at ECS Tuning | |||||
| 04 | Double pipe | 1 | 09/1998 | 64536908907 | $60.15 | Shop at ECS Tuning | ||||
| 05 | Suction pipe evaporator-compressor | 1 | 64536946353 | $142.43 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Rubber buffer | X | 61623413381 | $4.35 | Shop at ECS Tuning | |||||
| 06 | Gasket ring | 9,5X2,5 | 4 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | D=10,8 MM | 3 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | D=13,7 MM | 2 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| 10 | Sealing cap for suction line | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 13 | Pressure sensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 14 | Hex bolt | M10X18-8.8-ZNS3 | 2 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Fillister head with washer | M8X30-U1-ZNS3 | 6 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 14 | ISA screw | M8X25-10.9-ZNS3 | 8 | 07129904477 | $2.00 | Shop at ECS Tuning | ||||
| 15 | Universal socket housing uncoded | 3 POL. | 1 | 08/2006 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 08/2006 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 08/2006 | 61130056961 | Shop at ECS Tuning | ||||
| 15 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| 16 | Sealing cap for pressure line | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 17 | Rubber buffer | 1 | 04/2004 | 64119175671 | $4.25 | Shop at ECS Tuning | ||||
| 18 | Holder | 1 | 64509147384 | $10.51 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Coolant lines?
- This technical diagram illustrates the Coolant lines within the Heater and Air Conditioning group for the 3 Series E46 318i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pressure hose assy compressor-condenser (Part #64536946354).
- Which models use the hardware listed in this Coolant lines?
- The hardware and components featured in the Coolant lines are specific to the 3 Series E46 318i produced during 2003. These technical specifications ensure that parts like the Pressure hose assy compressor-condenser (64536946354) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Coolant lines assembly?
- Each item in the Coolant lines corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Pressure hose assy compressor-condenser by locating its position on the schematic, which then links to the official BMW part number 64536946354 for the Heater and Air Conditioning section.
