Air channel for BMW 7 Series E38 728i (1998)

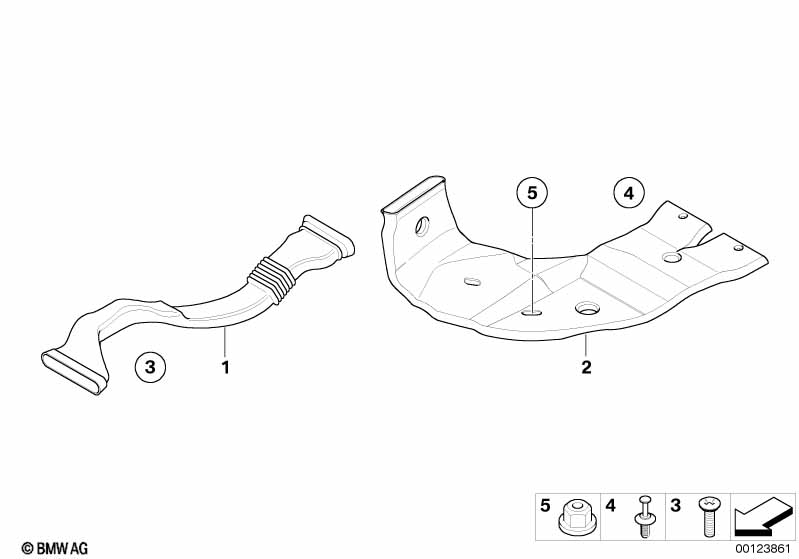

This Air channel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear heater duct | 1 | 64228150437 | $12.45 | ENDED | Shop at ECS Tuning | ||||
| 02 | Heater duct rear left | 1 | 64228125971 | $19.07 | Shop at ECS Tuning | |||||
| 02 | Heater duct rear right | 1 | 64228125972 | $19.07 | Shop at ECS Tuning | |||||
| 03 | Screw for thermoplastic plastics | M5X12 | X | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 04 | Expanding rivet | X | 51458163321 | $1.85 | Shop at ECS Tuning | |||||
| 05 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 728i Air channel?
- This technical diagram illustrates the Air channel within the Heater and Air Conditioning group for the 7 Series E38 728i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Rear heater duct (Part #64228150437).
- Which models use the hardware listed in this Air channel?
- The hardware and components featured in the Air channel are specific to the 7 Series E38 728i produced during 1998. These technical specifications ensure that parts like the Rear heater duct (64228150437) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air channel assembly?
- Each item in the Air channel corresponds to the numbered list below the illustration. For the 7 Series E38 728i, you can identify the Rear heater duct by locating its position on the schematic, which then links to the official BMW part number 64228150437 for the Heater and Air Conditioning section.
