Drying container for BMW 3 Series E46 325i (2004)

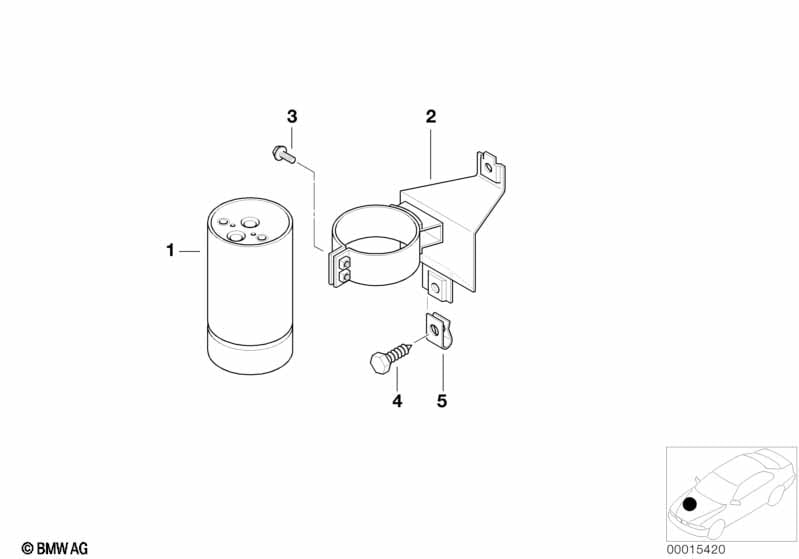

This Drying container technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Drying container | 1 | 64538377330 | $217.53 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket drying container | 1 | 64536917658 | $10.25 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Hex head screw | B6,3X16 | 2 | 07119916987 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Drying container?
- This technical diagram illustrates the Drying container within the Heater and Air Conditioning group for the 3 Series E46 325i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Drying container (Part #64538377330).
- Which models use the hardware listed in this Drying container?
- The hardware and components featured in the Drying container are specific to the 3 Series E46 325i produced during 2004. These technical specifications ensure that parts like the Drying container (64538377330) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Drying container assembly?
- Each item in the Drying container corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the Drying container by locating its position on the schematic, which then links to the official BMW part number 64538377330 for the Heater and Air Conditioning section.
