Climate compressor supporting bracket for BMW 5 Series E39 520i (1998)

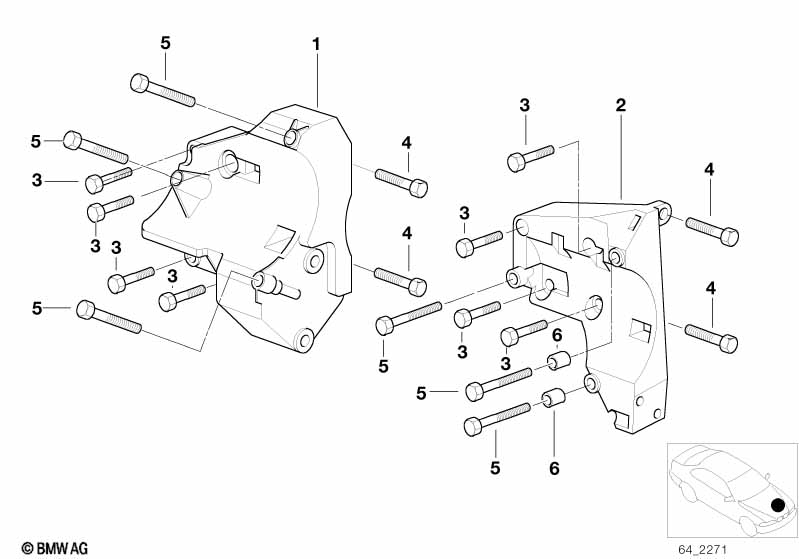

This Climate compressor supporting bracket technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 03 | Hex bolt | M8X35 | 4 | 07119912478 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X55-8.8 | 2 | 07119902957 | $5.27 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X90-8.8-ZNS | 3 | 07119912471 | $2.80 | Shop at ECS Tuning | ||||
