Drying container for BMW 5 Series E39 528i (2000)

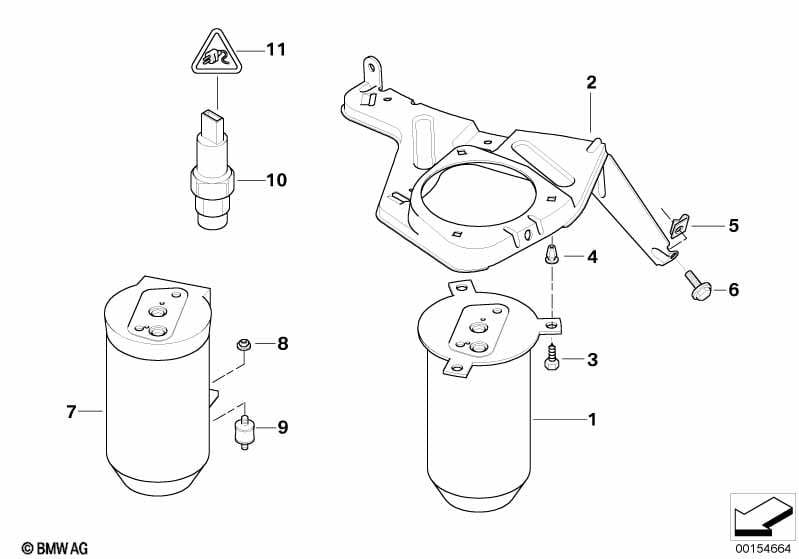

This Drying container technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

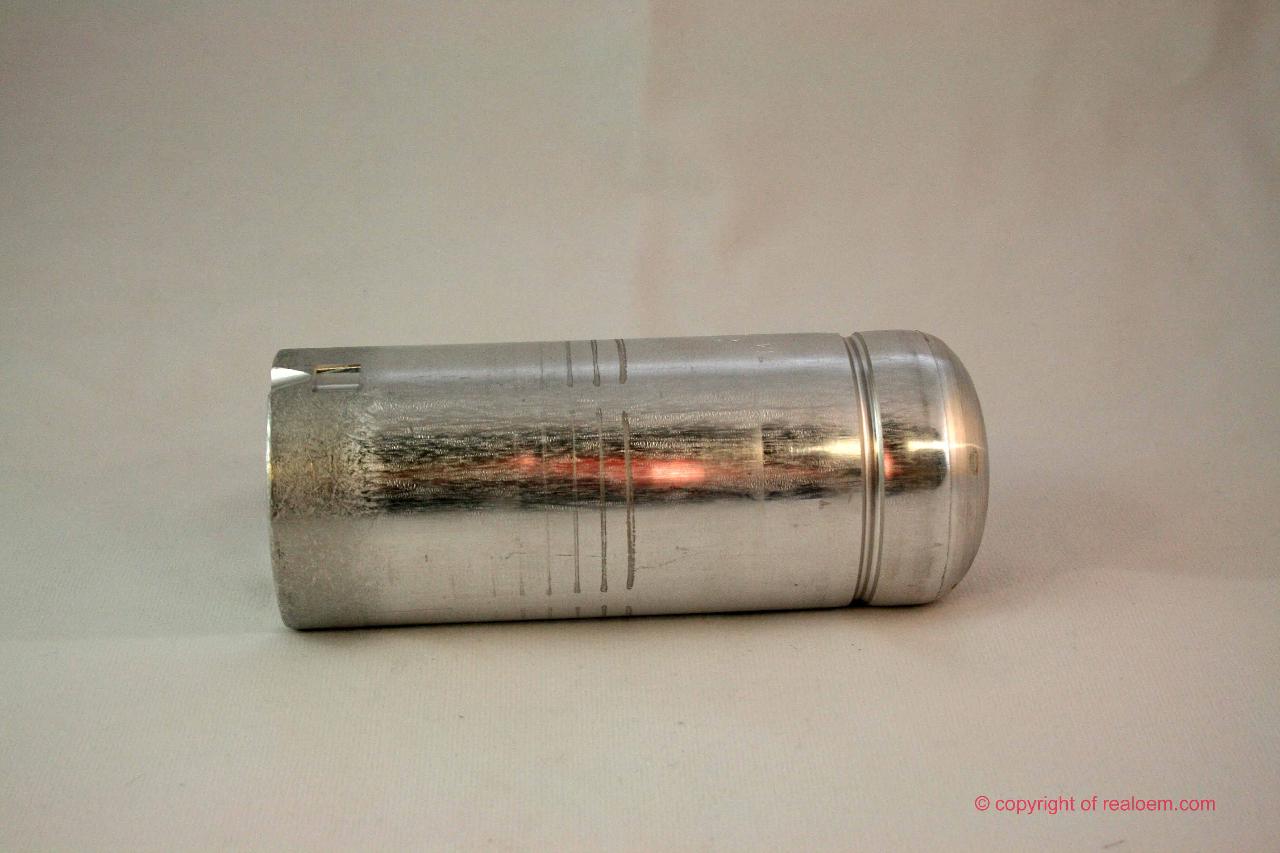

| 01 | Drying container | 1 | 03/1998 | 64538377330 | $217.53 | ENDED | Shop at ECS Tuning | |||
| 02 | Bracket drying container | 1 | 64538367956 | $14.42 | Shop at ECS Tuning | |||||
| 03 | Hex head screw | ST4,8X19-U2 SW | 3 | 07119904288 | $2.05 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 | 3 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 05 | C-clip nut | M6-ZNS3 | 3 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Pressure sensor | 1 | 09/1998 | 64539323658 | Shop at ECS Tuning | |||||
| 11 | Universal socket housing uncoded | 3 POL. | 1 | 07/2003 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 07/2003 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Single conductor seal | 0,5-1,5 MM² | 3 | 07/2003 | 61138353706 | $0.27 | Shop at ECS Tuning | |||
| 11 | Rep. kit for socket housing | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 3 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Single conductor seal | 0,5-1,5 MM² | 3 | 61138353706 | $0.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
