Air cond.compressor-supporting bracket for BMW 3 Series E36 318i (1998)

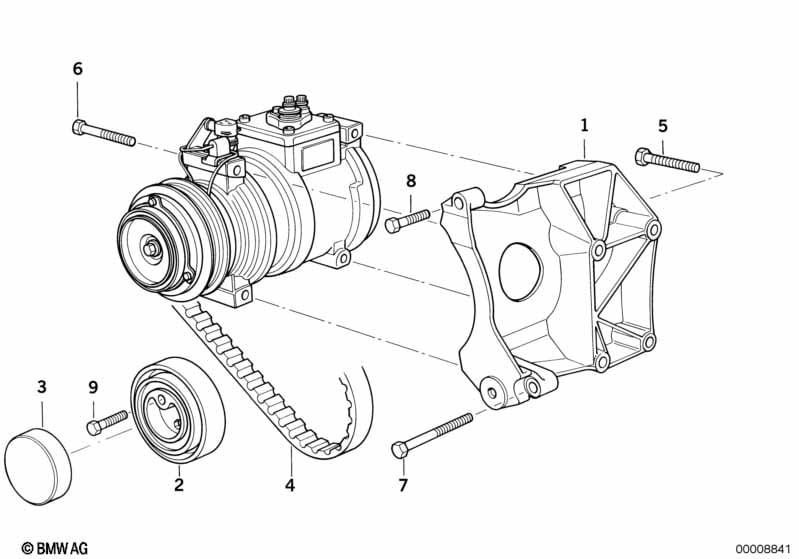

This Air cond.compressor-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important! Not suitable for retrofit air conditioning system Economic. For parts for Economic see EPC "Acessories Comfort" |
|||||||||
| 01 | Climate compressor supporting bracket | 1 | 09/1993 | 64551739627 | $54.75 | Shop at ECS Tuning | ||||
| 02 | Adjusting pulley | 1 | 09/1993 | 11282245087 | $80.75 | Shop at ECS Tuning | ||||
| 03 | Protection cap adjusting pulley | 1 | 09/1993 | 64551748384 | $15.32 | Shop at ECS Tuning | ||||
| 04 | Ribbed v-belt | 4K X 889 | 1 | 09/1993 | 11281743193 | $22.68 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M8X50 | 1 | 07119912517 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X50 | 4 | 09/1993 | 07119904533 | $2.84 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X100 | 1 | 09/1993 | 07119912570 | $1.78 | Shop at ECS Tuning | |||
| 08 | Hex bolt with washer | M8X40-Z1-ZNS3 | 1 | 09/1993 | 07119902927 | $1.05 | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X35 | 1 | 09/1993 | 07119913676 | $0.36 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318i Air cond.compressor-supporting bracket?
- This technical diagram illustrates the Air cond.compressor-supporting bracket within the Heater and Air Conditioning group for the 3 Series E36 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Climate compressor supporting bracket (Part #64551739627).
- Which models use the hardware listed in this Air cond.compressor-supporting bracket?
- The hardware and components featured in the Air cond.compressor-supporting bracket are specific to the 3 Series E36 318i produced during 1998. These technical specifications ensure that parts like the Climate compressor supporting bracket (64551739627) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cond.compressor-supporting bracket assembly?
- Each item in the Air cond.compressor-supporting bracket corresponds to the numbered list below the illustration. For the 3 Series E36 318i, you can identify the Climate compressor supporting bracket by locating its position on the schematic, which then links to the official BMW part number 64551739627 for the Heater and Air Conditioning section.
