Heater control for BMW 3 Series E46 318i (1998)

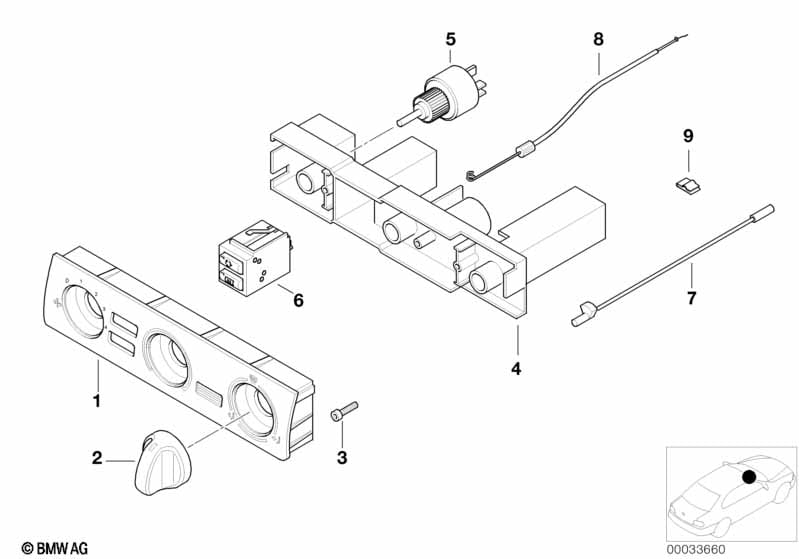

This Heater control technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater control panel | 1 | 64118373981 | Shop at ECS Tuning | ||||||
| 02 | Rotary knob | 3 | 64118373982 | Shop at ECS Tuning | ||||||
| 03 | Screw | KB35 X 8 | 1 | 07149154942 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Base plate | 1 | 64116915332 | $20.20 | Shop at ECS Tuning | |||||
| 05 | Switch blower | 1 | 64118375619 | $27.52 | Shop at ECS Tuning | |||||
| 06 | switch, heated rear windshield/air | 1 | 64118373983 | $110.63 | Shop at ECS Tuning | |||||
| 07 | Shaft | 1 | 64118372800 | Shop at ECS Tuning | ||||||
| 08 | Bowden cable temperature control | 1 | 64118372801 | Shop at ECS Tuning | ||||||
| 09 | Clip, bowden cable | 1 | 64118380256 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Heater control?
- This technical diagram illustrates the Heater control within the Heater and Air Conditioning group for the 3 Series E46 318i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Heater control panel (Part #64118373981).
- Which models use the hardware listed in this Heater control?
- The hardware and components featured in the Heater control are specific to the 3 Series E46 318i produced during 1998. These technical specifications ensure that parts like the Heater control panel (64118373981) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater control assembly?
- Each item in the Heater control corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Heater control panel by locating its position on the schematic, which then links to the official BMW part number 64118373981 for the Heater and Air Conditioning section.
