Diverse small parts for BMW 3 Series E46 320d (2001)

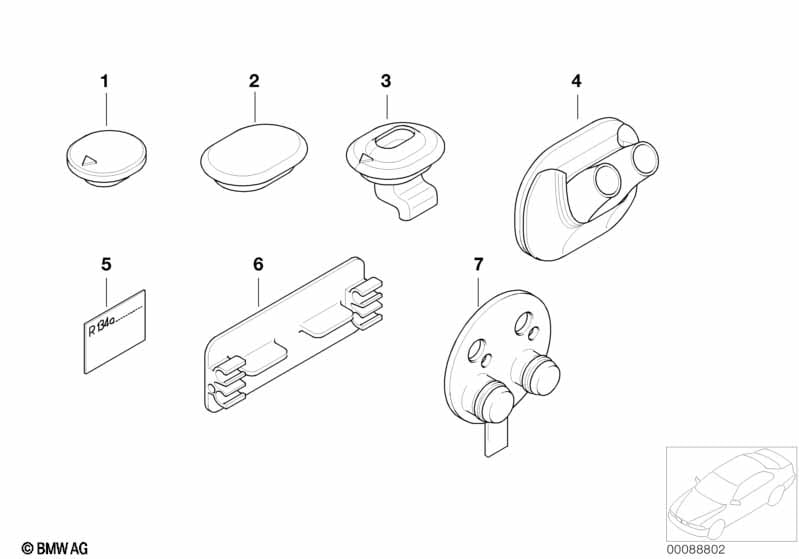

This Diverse small parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Blind plug | 1 | 64118373060 | $2.93 | Shop at ECS Tuning | |||||
| 02 | Grommet bottom part | 43X64 MM | 1 | 64538380986 | $3.42 | Shop at ECS Tuning | ||||
| 03 | Condensation water outlet hose | 1 | 64116906545 | $3.70 | Shop at ECS Tuning | |||||
| 04 | Grommet for water pipe | 1 | 64118368531 | $6.00 | Shop at ECS Tuning | |||||
| 05 | Label, coolant | 680+/-10G | 1 | 71239158487 | Shop at ECS Tuning | |||||
| 06 | Protective COVER | 1 | 09/2001 | 64538385711 | $0.80 | Shop at ECS Tuning | ||||
| For vehicles with Dynamic stability control |
S210A=Yes |
|||||||||
| 07 | Cover | 1 | 64538385710 | $5.45 | Shop at ECS Tuning | |||||
