Air duct for BMW 3 Series E46 328i (2000)

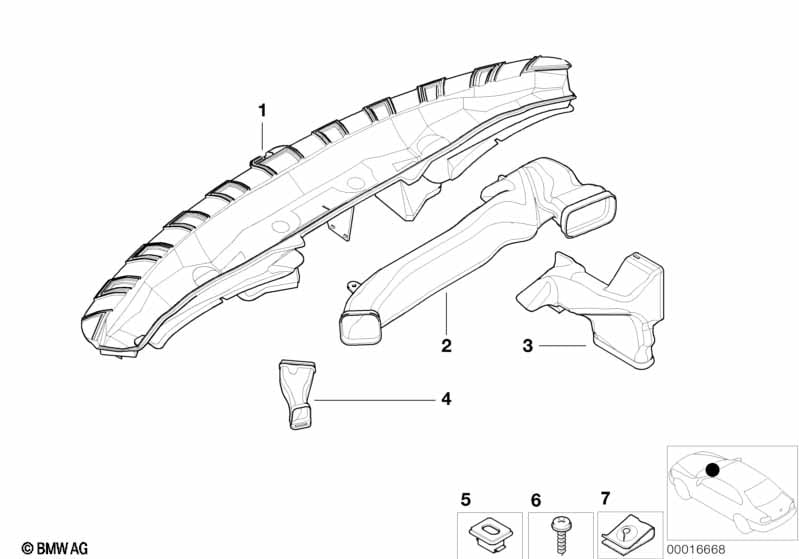

This Air duct technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Warm air duct | 1 | 64228196096 | $52.55 | Shop at ECS Tuning | |||||
| 02 | Cold air duct left | 1 | 64228196097 | $8.26 | Shop at ECS Tuning | |||||
| 02 | Cold air duct right | 1 | 64228196098 | $8.26 | Shop at ECS Tuning | |||||
| 03 | Left floor heater duct | 1 | 64228203881 | $12.65 | Shop at ECS Tuning | |||||
| 03 | Right floor heater duct | 1 | 64228203882 | $12.65 | Shop at ECS Tuning | |||||
| 04 | Defroster nozzle left | 1 | 64228207901 | $2.09 | Shop at ECS Tuning | |||||
| 04 | Defroster nozzle right | 1 | 64228207902 | $2.09 | Shop at ECS Tuning | |||||
| 05 | Repair kit | X | 51458268560 | $5.59 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sheet metal screw | ST4,2X19-U1-C-H | X | 07119904175 | $0.25 | Shop at ECS Tuning | ||||
| 07 | C-clip nut | X | 07146988451 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 328i Air duct?
- This technical diagram illustrates the Air duct within the Heater and Air Conditioning group for the 3 Series E46 328i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Warm air duct (Part #64228196096).
- Which models use the hardware listed in this Air duct?
- The hardware and components featured in the Air duct are specific to the 3 Series E46 328i produced during 2000. These technical specifications ensure that parts like the Warm air duct (64228196096) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air duct assembly?
- Each item in the Air duct corresponds to the numbered list below the illustration. For the 3 Series E46 328i, you can identify the Warm air duct by locating its position on the schematic, which then links to the official BMW part number 64228196096 for the Heater and Air Conditioning section.
