water hoses/water valve for BMW 1502-2002tii 2002 (1971)

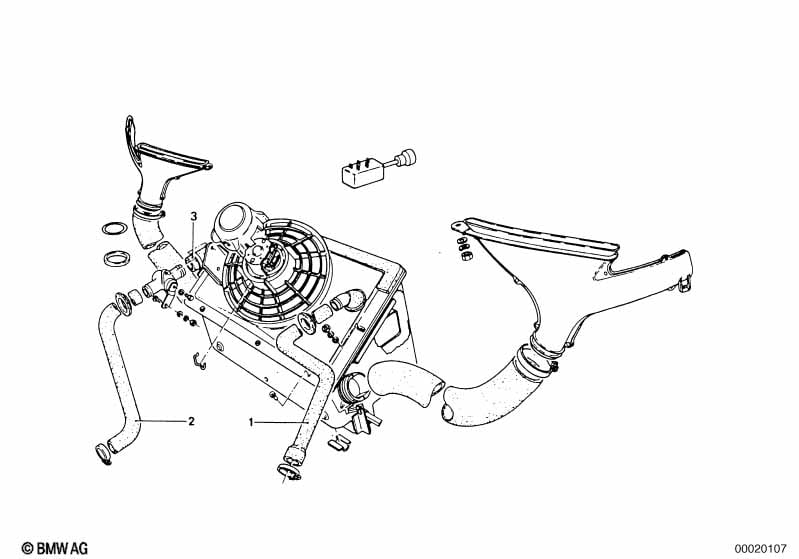

This water hoses/water valve technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Return hose | 14MM / 14MM | 1 | 03/1966 | 01/1972 | 64214474131 | $30.95 | ENDED | Shop at ECS Tuning | |
| 01 | Return hose | 14 MM / 22 MM | 1 | 03/1971 | 08/1973 | 64211351311 | $31.59 | ENDED | Shop at ECS Tuning | |
| 02 | Water hose | 14MM / 14MM | 1 | 03/1966 | 04/1972 | 64214474130 | $30.95 | Shop at ECS Tuning | ||

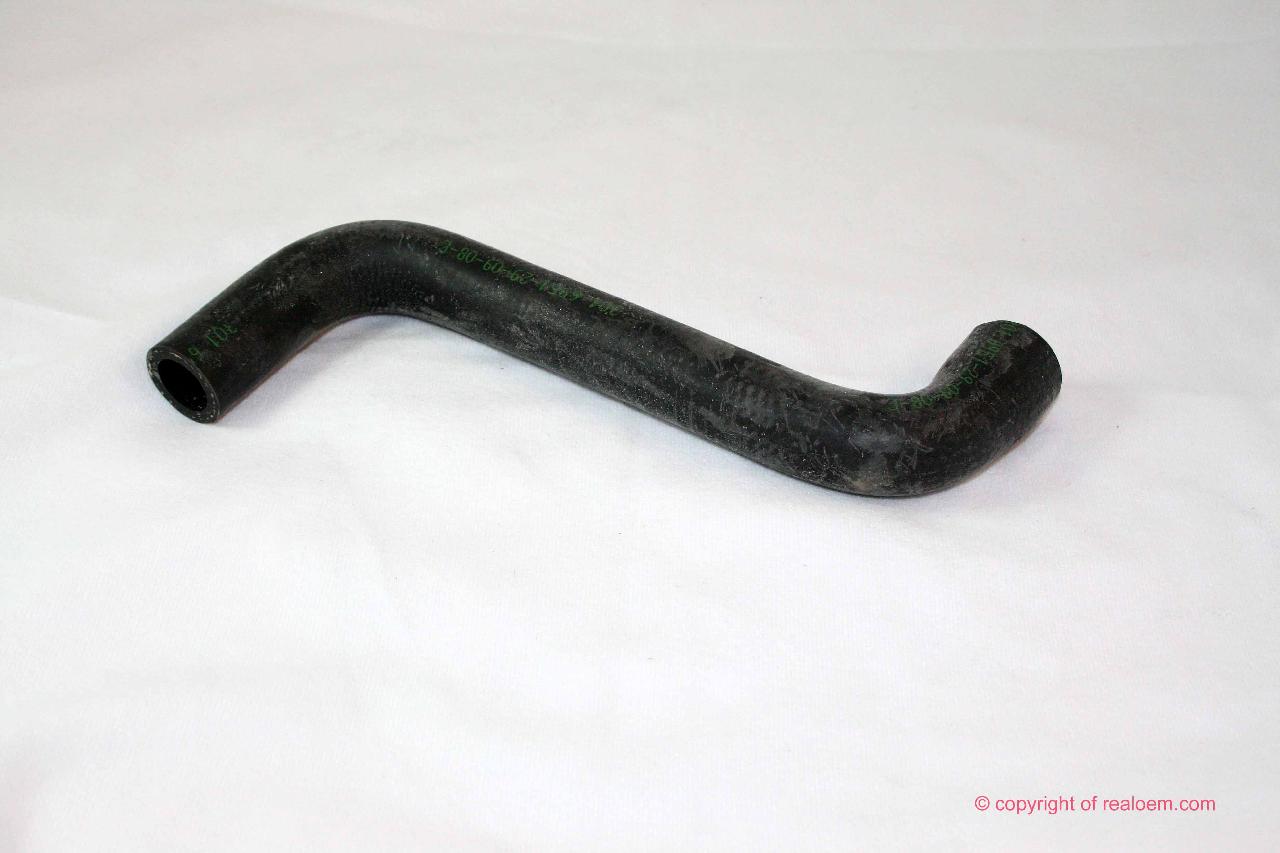

| 02 | Water hose | 1 | 03/1971 | 07/1977 | 64211353368 | $32.69 | Shop at ECS Tuning | |||
| 03 | Hose | 18MM | 1 | 64111351462 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hose | 18MM | 1 | 64111353353 | $11.17 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
