water hoses/water valve for BMW 1502-2002tii 2002 (1973)

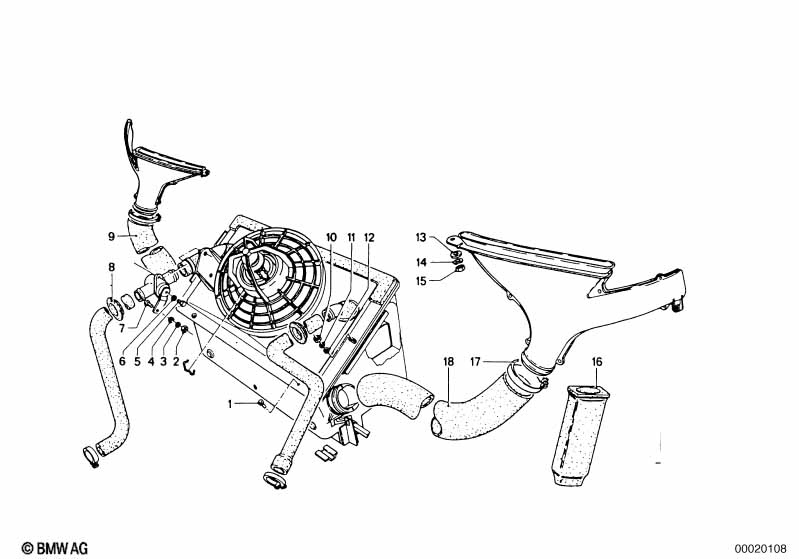

This water hoses/water valve technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rivet | A4X0,4X8-MS NI | 6 | 07119949620 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex nut | M4-A2-70 | 1 | 07119922854 | Shop at ECS Tuning | |||||
| 03 | Spring washer | B4 | 1 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST3,9X9,5 | 1 | 03/1971 | 07/1977 | 07119916801 | ENDED | Shop at ECS Tuning | ||
| 06 | Tooth washer | A4,3 | 1 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Pin | 1 | 64114674219 | $3.35 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 18MM | 2 | 03/1971 | 07/1977 | 64211376130 | $1.51 | Shop at ECS Tuning | ||
| 09 | Hot air hose lateral | 1 | 64211355184 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 13 | Washer | 10X5,3X1-200 HV | 4 | 07119904206 | Shop at ECS Tuning | |||||
| 13 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Wave washer | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Hex nut with plate | M5 | 4 | 07147202368 | Shop at ECS Tuning | |||||
| 16 | Hose | 3 | 64214474121 | $31.67 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hose clamp | 2 | 64221355179 | ENDED | Shop at ECS Tuning | |||||
| 18 | Hot air hose lateral | 1 | 64211355185 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
