Heater control for BMW 1502-2002tii 2002 (1972)
This Heater control technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Switch blower | 1 | 64111356507 | $258.45 | ENDED | Shop at ECS Tuning | ||||
| 02 | Protective hose | 4 | 64111357018 | ENDED | Shop at ECS Tuning | |||||
| 03 | Contact cicuit | 1 | 64111356511 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bulb | 1,2W | 2 | 62149557328 | $2.68 | ENDED | Shop at ECS Tuning | |||
| 05 | Bulb socket | 2 | 61131355640 | $3.63 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bulb support | 2 | 64111356496 | $16.96 | Shop at ECS Tuning | |||||
| 07 | Cylinder | 5X8 | 1 | 07119986731 | ENDED | Shop at ECS Tuning | ||||
| 08 | Plastic rivet | 3 | 64111356497 | ENDED | Shop at ECS Tuning | |||||
| 09 | Nut | 2 | 64111355539 | ENDED | Shop at ECS Tuning | |||||
| 10 | Lever | 1 | 64111356514 | ENDED | Shop at ECS Tuning | |||||
| 11 | Insulating washer | 4 | 64111351454 | ENDED | Shop at ECS Tuning | |||||
| 12 | Hex bolt | M5X16 | 3 | 07119913241 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 13 | Washer | 10X5,3X1-200 HV | 3 | 07119904206 | Shop at ECS Tuning | |||||
| 13 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Clamp | 1 | 64111357971 | ENDED | Shop at ECS Tuning | |||||
| 15 | Spring washer | B5 | 3 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 16 | Hex nut | M5-8-ZNNIV SI | 3 | 07119905729 | Shop at ECS Tuning | |||||
| 17 | Contact | 1 | 64111356517 | ENDED | Shop at ECS Tuning | |||||
| 18 | Lever | 1 | 64111356516 | ENDED | Shop at ECS Tuning | |||||
| 19 | Pin | 2 | 64111356498 | ENDED | Shop at ECS Tuning | |||||
| 20 | Heater control | 1 | 64111356518 | ENDED | Shop at ECS Tuning | |||||
| 21 | Lever | 1 | 64111356522 | ENDED | Shop at ECS Tuning | |||||
| 22 | Clamp | 2 | 64111351471 | ENDED | Shop at ECS Tuning | |||||
| 23 | Lever | 1 | 64111356520 | ENDED | Shop at ECS Tuning | |||||
| 24 | Wiring heater control | 1 | 04/1971 | 07/1977 | 64111357093 | $101.28 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Heater control?

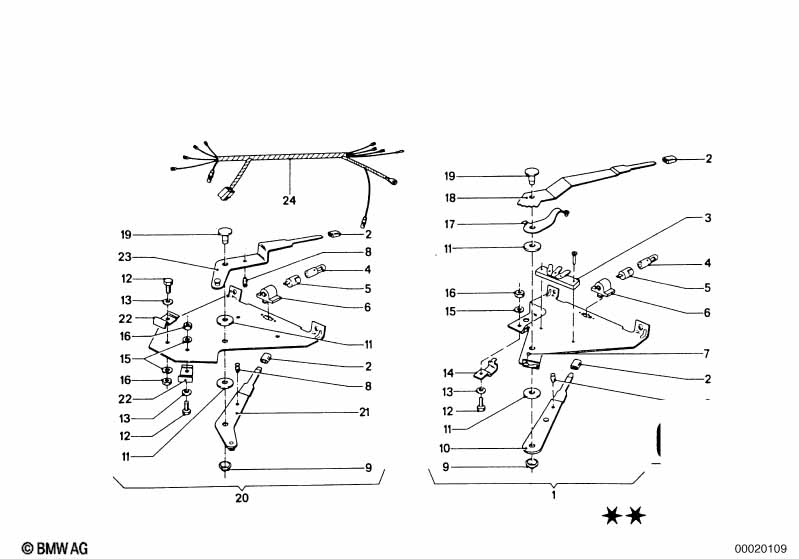

- This technical diagram illustrates the Heater control within the Heater and Air Conditioning group for the 1502-2002tii 2002 produced during 1972. It provides a detailed exploded view of the components, identifying key parts such as the Switch blower (Part #64111356507).
- Which models use the hardware listed in this Heater control?
- The hardware and components featured in the Heater control are specific to the 1502-2002tii 2002 produced during 1972. These technical specifications ensure that parts like the Switch blower (64111356507) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater control assembly?
- Each item in the Heater control corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Switch blower by locating its position on the schematic, which then links to the official BMW part number 64111356507 for the Heater and Air Conditioning section.
