Heater for BMW 1500-2000CS 2000 (1971)

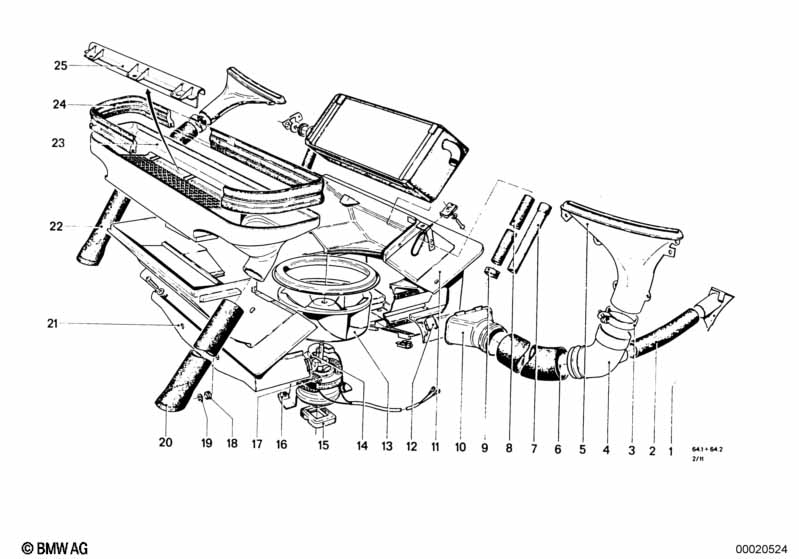

This Heater technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 2000. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Defroster nozzle left | 1 | 64224774180 | ENDED | Shop at ECS Tuning | |||||
| 01 | Defroster nozzle right | 1 | 64224774181 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hot air hose | 2 | 64214774142 | ENDED | Shop at ECS Tuning | |||||
| 05 | Jet | 1 | 64224774182 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hot air hose | 1 | 64214774141 | ENDED | Shop at ECS Tuning | |||||
| 08 | Water hose | 1 | 64214774134 | ENDED | Shop at ECS Tuning | |||||
| 10 | Connector | 2 | 64114674180 | ENDED | Shop at ECS Tuning | |||||
| 11 | Housing rear | 1 | 64114674106 | ENDED | Shop at ECS Tuning | |||||
| 13 | Fan wheel | 1 | 64114674112 | ENDED | Shop at ECS Tuning | |||||
| 14 | Rubber buffer | 1 | 64114674182 | ENDED | Shop at ECS Tuning | |||||
| 15 | Rubber buffer | 1 | 64114674183 | ENDED | Shop at ECS Tuning | |||||
| 16 | Holder | 1 | 64114674103 | ENDED | Shop at ECS Tuning | |||||
| 18 | Rubber grommet | 4 | 64114674187 | ENDED | Shop at ECS Tuning | |||||
| 19 | Lock Ring | 2 | 64114674164 | ENDED | Shop at ECS Tuning | |||||
| 20 | Outlet hose | 1 | 64214674120 | ENDED | Shop at ECS Tuning | |||||
| 21 | Housing rear | 1 | 64114674105 | ENDED | Shop at ECS Tuning | |||||
| 22 | Outlet hose | 1 | 64214674120 | ENDED | Shop at ECS Tuning | |||||
| 23 | Air channel | 1 | 64114674178 | ENDED | Shop at ECS Tuning | |||||
| 24 | Gasket | 1 | 64114674175 | Shop at ECS Tuning | ||||||
| 25 | Cover | 1 | 64111350958 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 2000 Heater?
- This technical diagram illustrates the Heater within the Heater and Air Conditioning group for the 1500-2000CS 2000 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Defroster nozzle left (Part #64224774180).
- Which models use the hardware listed in this Heater?
- The hardware and components featured in the Heater are specific to the 1500-2000CS 2000 produced during 1971. These technical specifications ensure that parts like the Defroster nozzle left (64224774180) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater assembly?
- Each item in the Heater corresponds to the numbered list below the illustration. For the 1500-2000CS 2000, you can identify the Defroster nozzle left by locating its position on the schematic, which then links to the official BMW part number 64224774180 for the Heater and Air Conditioning section.
