Heater control for BMW 1500-2000CS 1800 (1969)

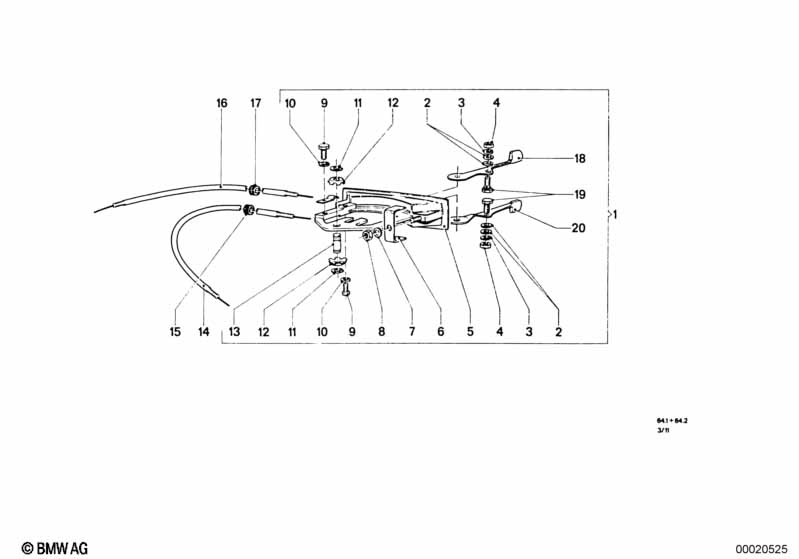

This Heater control technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1969.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Heater control | 1 | 64114674070 | ENDED | Shop at ECS Tuning | |||||
| 03 | Spring washer | B4 | 2 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M4-A2-70 | 2 | 07119922854 | Shop at ECS Tuning | |||||
| 05 | Cover | 1 | 64114674200 | ENDED | Shop at ECS Tuning | |||||
| 07 | Wave washer | B6 | 2 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 08 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M5X10 | 2 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 10 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Circlip | 5-ZNS3 | 2 | 07119904660 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Wave washer | 2 | 64114674216 | ENDED | Shop at ECS Tuning | |||||
| 13 | BMW Classic | 1 | 64114674212 | ENDED | Shop at ECS Tuning | |||||
| 14 | Bowden cable | 1 | 64114674225 | ENDED | Shop at ECS Tuning | |||||
| 16 | Bowden cable | 1 | 64114674190 | ENDED | Shop at ECS Tuning | |||||
| 18 | Lever | 1 | 64114674208 | ENDED | Shop at ECS Tuning | |||||
| 19 | Pin | 1 | 64114674219 | $3.35 | ENDED | Shop at ECS Tuning | ||||
| 20 | Lever | 1 | 64114674205 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1500-2000CS 1800 Heater control?
- This technical diagram illustrates the Heater control within the Heater and Air Conditioning group for the 1500-2000CS 1800 produced during 1969. It provides a detailed exploded view of the components, identifying key parts such as the Heater control (Part #64114674070).
- Which models use the hardware listed in this Heater control?
- The hardware and components featured in the Heater control are specific to the 1500-2000CS 1800 produced during 1969. These technical specifications ensure that parts like the Heater control (64114674070) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater control assembly?
- Each item in the Heater control corresponds to the numbered list below the illustration. For the 1500-2000CS 1800, you can identify the Heater control by locating its position on the schematic, which then links to the official BMW part number 64114674070 for the Heater and Air Conditioning section.
