Heater for BMW 2.5CS-3.0CSL 3.0CS (1973)

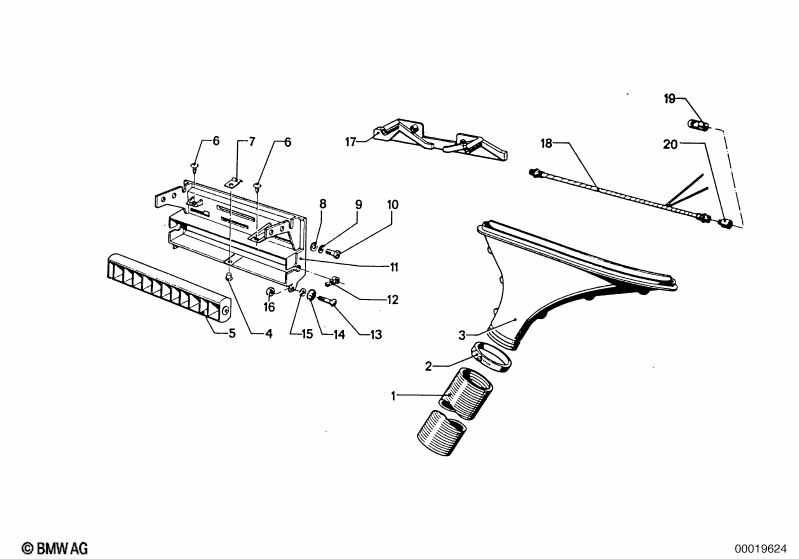

This Heater technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hose clamp | 2 | 64221355179 | ENDED | Shop at ECS Tuning | |||||
| 03 | Defroster nozzle left | 1 | 64221351339 | ENDED | Shop at ECS Tuning | |||||
| 03 | Defroster nozzle right | 1 | 64221351340 | ENDED | Shop at ECS Tuning | |||||
| 05 | Fresh air grille | 1 | 64221350426 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Spring | 1 | 64111353658 | ENDED | Shop at ECS Tuning | |||||
| 08 | Washer | A6,4-200HV-ZNS3 | 8 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 11 | Cover | 1 | 04/1971 | 12/1974 | 64111355646 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover | 1 | 04/1971 | 11/1975 | 64111356540 | ENDED | Shop at ECS Tuning | |||
| 12 | Supporting bracket | 2 | 64221350427 | ENDED | Shop at ECS Tuning | |||||
| 13 | Csk.fillister head srew | AM4X30 | 2 | 07119901734 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hollow washer | 2 | 51211859979 | $0.40 | Shop at ECS Tuning | |||||
| 15 | Set flat washer 20 | A4,3 | 7 | 07509064020 | ENDED | Shop at ECS Tuning | ||||
| 17 | Prisma | 1 | 04/1971 | 11/1975 | 64111356559 | ENDED | Shop at ECS Tuning | |||
| 18 | Wiring heater control | 1 | 04/1971 | 11/1975 | 64111356574 | ENDED | Shop at ECS Tuning | |||
| 19 | Bulb | 1,2W | 1 | 04/1971 | 11/1975 | 62149557328 | $2.68 | ENDED | Shop at ECS Tuning | |
| 20 | Plug housing | 1 | 04/1971 | 11/1975 | 61131355371 | ENDED | Shop at ECS Tuning |
