Heater control for BMW 2.5CS-3.0CSL 3.0CS (1973)

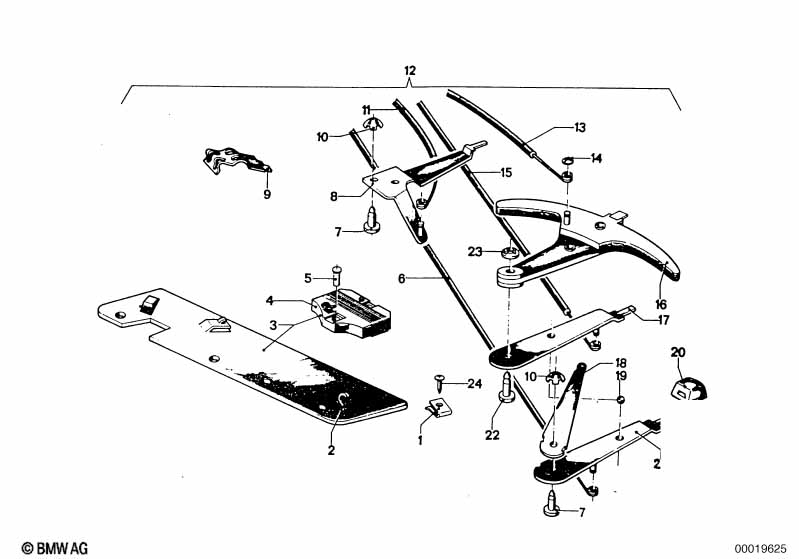

This Heater control technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Nut | 5 | 64111351379 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cable holder | 1 | 64111351385 | ENDED | Shop at ECS Tuning | |||||
| 03 | Switch panel | 1 | 64111352001 | ENDED | Shop at ECS Tuning | |||||
| 04 | Resistor | 1 | 64111351396 | ENDED | Shop at ECS Tuning | |||||
| 05 | Rivet | B4X12 | 2 | 07119949258 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bowden cable | 1 | 64111811307 | ENDED | Shop at ECS Tuning | |||||
| 07 | Pin | 2 | 64111351389 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lever | 1 | 64111351384 | ENDED | Shop at ECS Tuning | |||||
| 09 | Clamp | 9 | 64111351375 | $1.74 | ENDED | Shop at ECS Tuning | ||||
| 10 | Nut | 2 | 64111351388 | ENDED | Shop at ECS Tuning | |||||
| 11 | Bowden cable | 1 | 64111811308 | ENDED | Shop at ECS Tuning | |||||
| 12 | Heater control | 1 | 64111811306 | ENDED | Shop at ECS Tuning | |||||
| 13 | Bowden cable | 1 | 64111811310 | ENDED | Shop at ECS Tuning | |||||
| 14 | Nut | 1 | 64111351475 | ENDED | Shop at ECS Tuning | |||||
| 15 | Bowden cable air distribution | 1 | 64111811309 | ENDED | Shop at ECS Tuning | |||||
| 16 | Lever | 1 | 64111353145 | ENDED | Shop at ECS Tuning | |||||
| 17 | Lever | 1 | 64111351382 | ENDED | Shop at ECS Tuning | |||||
| 18 | contact spring | 1 | 64111351387 | ENDED | Shop at ECS Tuning | |||||
| 19 | Ball | 5MM III | 2 | 07119986250 | $0.28 | Shop at ECS Tuning | ||||
| 20 | Button | 4 | 64111353115 | ENDED | Shop at ECS Tuning | |||||
| 21 | Lever | 1 | 64111351381 | ENDED | Shop at ECS Tuning | |||||
| 22 | Pin | 1 | 64111351390 | ENDED | Shop at ECS Tuning | |||||
| 23 | Washer | 1 | 64111351391 | ENDED | Shop at ECS Tuning | |||||
| 24 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CS Heater control?
- This technical diagram illustrates the Heater control within the Heater and Air Conditioning group for the 2.5CS-3.0CSL 3.0CS produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Nut (Part #64111351379).
- Which models use the hardware listed in this Heater control?
- The hardware and components featured in the Heater control are specific to the 2.5CS-3.0CSL 3.0CS produced during 1973. These technical specifications ensure that parts like the Nut (64111351379) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heater control assembly?
- Each item in the Heater control corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CS, you can identify the Nut by locating its position on the schematic, which then links to the official BMW part number 64111351379 for the Heater and Air Conditioning section.
