Air cond.compressor-supporting bracket for BMW 2.5CS-3.0CSL 3.0CS (1973)

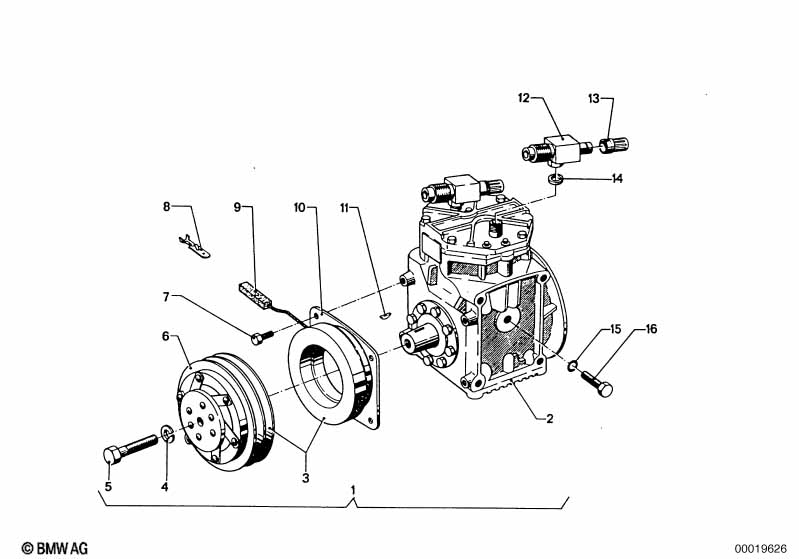

This Air cond.compressor-supporting bracket technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | RP A/C compressor | 1 | 64521351910 | ENDED | Shop at ECS Tuning | |||||
| 03 | Magnetic clutch | 1 | 64521351911 | $321.54 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Spring washer | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | 1 | 64521352215 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | 4 | 64521352217 | ENDED | Shop at ECS Tuning | |||||
| 08 | Flat-type connector | 1 | 61138061782 | $0.63 | ENDED | Shop at ECS Tuning | ||||
| 09 | Insulating cover | 1 | 61131351093 | ENDED | Shop at ECS Tuning | |||||
| 11 | Woodruff key | 4X6,5 | 1 | 07119951461 | $0.87 | Shop at ECS Tuning | ||||
| 12 | Valve | 2 | 64521356613 | $45.30 | ENDED | Shop at ECS Tuning | ||||
| 13 | Protection cap | 2 | 64521352080 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cap | 2 | 04/1971 | 11/1975 | 64531363569 | $2.82 | ENDED | Shop at ECS Tuning | ||
| 14 | Gasket | 2 | 64521352082 | $6.77 | ENDED | Shop at ECS Tuning | ||||
| 15 | O-ring | 1 | 64521352081 | ENDED | Shop at ECS Tuning | |||||
| 16 | Hex bolt | 1 | 64521352216 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CS Air cond.compressor-supporting bracket?
- This technical diagram illustrates the Air cond.compressor-supporting bracket within the Heater and Air Conditioning group for the 2.5CS-3.0CSL 3.0CS produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the RP A/C compressor (Part #64521351910).
- Which models use the hardware listed in this Air cond.compressor-supporting bracket?
- The hardware and components featured in the Air cond.compressor-supporting bracket are specific to the 2.5CS-3.0CSL 3.0CS produced during 1973. These technical specifications ensure that parts like the RP A/C compressor (64521351910) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air cond.compressor-supporting bracket assembly?
- Each item in the Air cond.compressor-supporting bracket corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CS, you can identify the RP A/C compressor by locating its position on the schematic, which then links to the official BMW part number 64521351910 for the Heater and Air Conditioning section.
