Air conditioning unit parts for BMW 2.5CS-3.0CSL 3.0CS (1973)

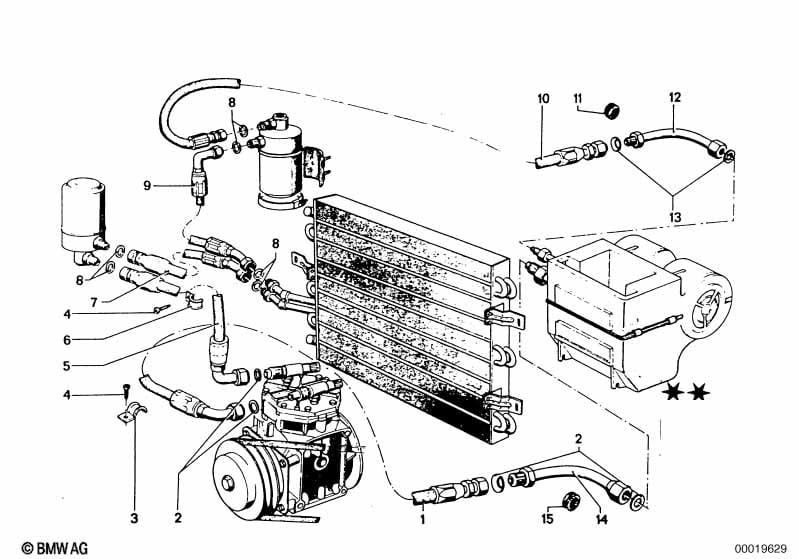

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Hose line | 1 | 64531811414 | $75.05 | Shop at ECS Tuning | |||||
| 02 | Conical ring | D=20MM | 4 | 64531350491 | $1.23 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 1 | 64531350939 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST5,5X13 | 2 | 07119907770 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose | 1 | 64531353039 | $59.85 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hose clamp | 3 | 64531352112 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hose | 1 | 64531353038 | $52.47 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket | 3/4" | 6 | 64531350489 | $3.08 | Shop at ECS Tuning | ||||
| 09 | Hose | 1 | 64531350935 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hose line | 1 | 64531811413 | $31.85 | Shop at ECS Tuning | |||||
| 11 | Rubber grommet | 1 | 64214774144 | $1.46 | Shop at ECS Tuning | |||||
| 12 | Pipe | 1 | 64531811409 | ENDED | Shop at ECS Tuning | |||||
| 13 | Gasket | 5/8" | 2 | 64531350490 | $3.08 | ENDED | Shop at ECS Tuning | |||
| 14 | Pipe | 1 | 64531811410 | ENDED | Shop at ECS Tuning | |||||
| 15 | Rubber grommet | 1 | 63128071754 | $1.13 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CS Air conditioning unit parts?
- This technical diagram illustrates the Air conditioning unit parts within the Heater and Air Conditioning group for the 2.5CS-3.0CSL 3.0CS produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Hose line (Part #64531811414).
- Which models use the hardware listed in this Air conditioning unit parts?
- The hardware and components featured in the Air conditioning unit parts are specific to the 2.5CS-3.0CSL 3.0CS produced during 1973. These technical specifications ensure that parts like the Hose line (64531811414) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air conditioning unit parts assembly?
- Each item in the Air conditioning unit parts corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CS, you can identify the Hose line by locating its position on the schematic, which then links to the official BMW part number 64531811414 for the Heater and Air Conditioning section.
