Air conditioning unit parts for BMW 2.5CS-3.0CSL 2.5CS (1975)

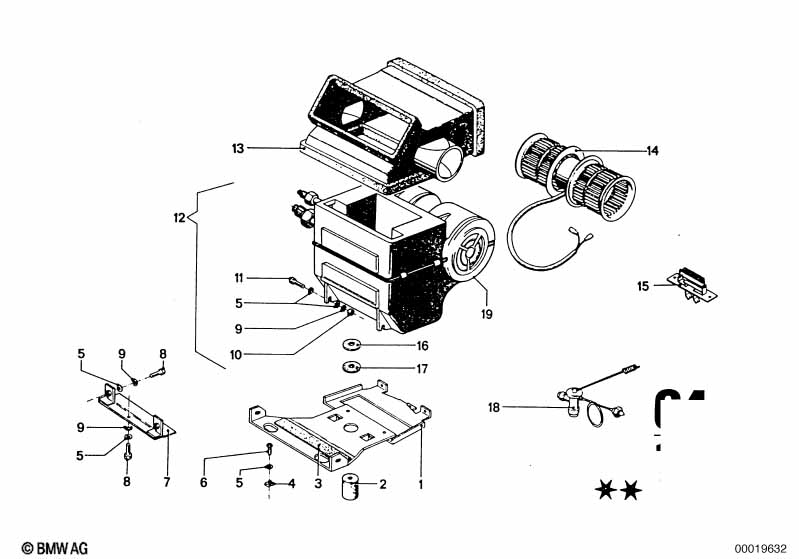

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 2.5CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Base plate | 1 | 64511811417 | $68.36 | ENDED | Shop at ECS Tuning | ||||
| 02 | Washer-gasket | 3 | 64511352344 | ENDED | Shop at ECS Tuning | |||||
| 03 | Felt strip | 1 | 64511372091 | $0.85 | ENDED | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Washer | 5.3-140 HV-ZNS | 12 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,8X13 | 4 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 64511351936 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M5X12-8.8 ZN | 4 | 07119913231 | $1.42 | Shop at ECS Tuning | ||||
| 09 | Spring washer | B5 | 6 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M5X16 | 2 | 07119913241 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 12 | Evaporator | 1 | 64511367469 | ENDED | Shop at ECS Tuning | |||||
| 13 | Intermediate piece | 1 | 64501811407 | ENDED | Shop at ECS Tuning | |||||
| 15 | Resistor | 1 | 64511352023 | $13.84 | ENDED | Shop at ECS Tuning | ||||
| 16 | Gasket ring | 1 | 64511352063 | ENDED | Shop at ECS Tuning | |||||
| 17 | Rubber seal | 1 | 64511352205 | $3.43 | ENDED | Shop at ECS Tuning | ||||
| 18 | Expansion valve | 1 | 64511354379 | $90.10 | ENDED | Shop at ECS Tuning | ||||
| 19 | Frame | 2 | 64511352019 | $7.71 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 2.5CS Air conditioning unit parts?
- This technical diagram illustrates the Air conditioning unit parts within the Heater and Air Conditioning group for the 2.5CS-3.0CSL 2.5CS produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Base plate (Part #64511811417).
- Which models use the hardware listed in this Air conditioning unit parts?
- The hardware and components featured in the Air conditioning unit parts are specific to the 2.5CS-3.0CSL 2.5CS produced during 1975. These technical specifications ensure that parts like the Base plate (64511811417) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Air conditioning unit parts assembly?
- Each item in the Air conditioning unit parts corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 2.5CS, you can identify the Base plate by locating its position on the schematic, which then links to the official BMW part number 64511811417 for the Heater and Air Conditioning section.
