Air conditioning unit parts for BMW 2.5CS-3.0CSL 3.0CSL (1973)

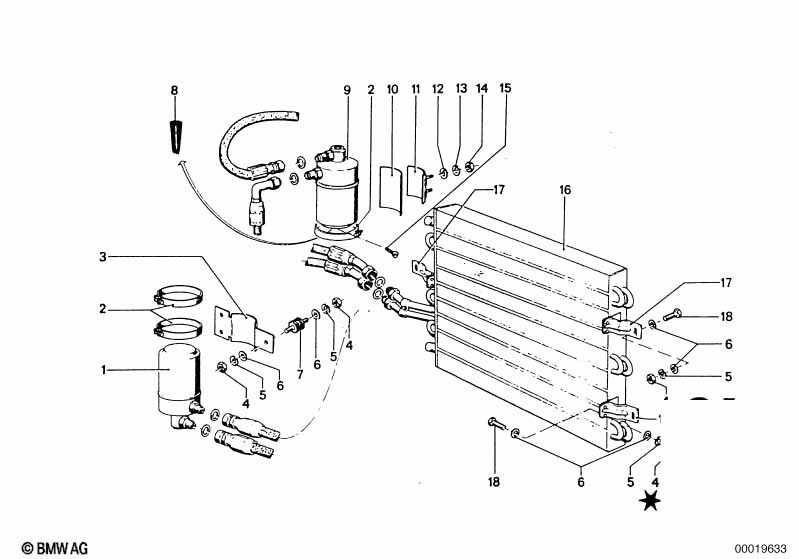

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Vibration damper | 1 | 12/1968 | 11/1975 | 64531353040 | ENDED | Shop at ECS Tuning | |||
| 02 | Hose clamp | 4 | 11621325320 | $2.68 | ENDED | Shop at ECS Tuning | ||||
| 03 | Holder | 1 | 12/1968 | 11/1975 | 64531353041 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M6-8-ZNNIV SI | 12 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Spring washer | B6 | 12 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | 18 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Vibration damper | 3 | 12/1968 | 11/1975 | 64218042132 | $8.10 | Shop at ECS Tuning | |||
| 08 | Strainer | 1 | 64531354223 | ENDED | Shop at ECS Tuning | |||||
| 09 | Drying container | 1 | 64531353272 | $212.29 | Shop at ECS Tuning | |||||
| 10 | Plate | 1 | 64501811979 | $0.42 | ENDED | Shop at ECS Tuning | ||||
| 12 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 13 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8-8-ZNS3 | 2 | 11/1975 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Fillister head self-tapping screw | ST5,5X13 | 2 | 07119907770 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 16 | Condenser | 1 | 12/1968 | 11/1975 | 64531350929 | ENDED | Shop at ECS Tuning | |||
| 17 | Support | 2 | 64531811161 | ENDED | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M6X16-8.8-ZNS3 | 6 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
