Air conditioning unit parts for BMW 2.5CS-3.0CSL 3.0CS (1975)

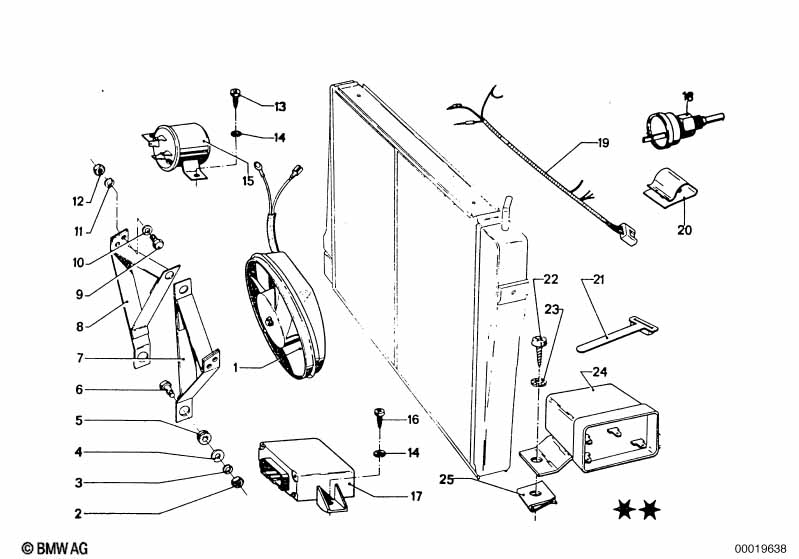

This Air conditioning unit parts technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex nut | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 03 | Spring washer | B5 | 4 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Washer | 4 | 17401354523 | $0.63 | Shop at ECS Tuning | |||||
| 06 | Fit bolt | M5 | 4 | 17401354522 | $1.17 | Shop at ECS Tuning | ||||
| 07 | Bracket left | 1 | 17411354943 | ENDED | Shop at ECS Tuning | |||||
| 08 | Bracket right | 1 | 17411354944 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Washer | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 14 | Tooth washer | A5,1 | 4 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Relay | 1 | 61311351317 | ENDED | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapping screw | ST4,8X13 | 2 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Cable clamp | D=8/B=1,5 | 1 | 61131354726 | $0.42 | Shop at ECS Tuning | ||||
| 21 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 22 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 23 | Tooth washer | A5,1 | 4 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 24 | Relay | 1 | 61311354841 | ENDED | Shop at ECS Tuning | |||||
| 25 | Body nut | ST4,8-5 | 2 | 07129901652 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
