Air cond.syst.-relais/switch/wiring set for BMW 2.5CS-3.0CSL 3.0CS (1973)

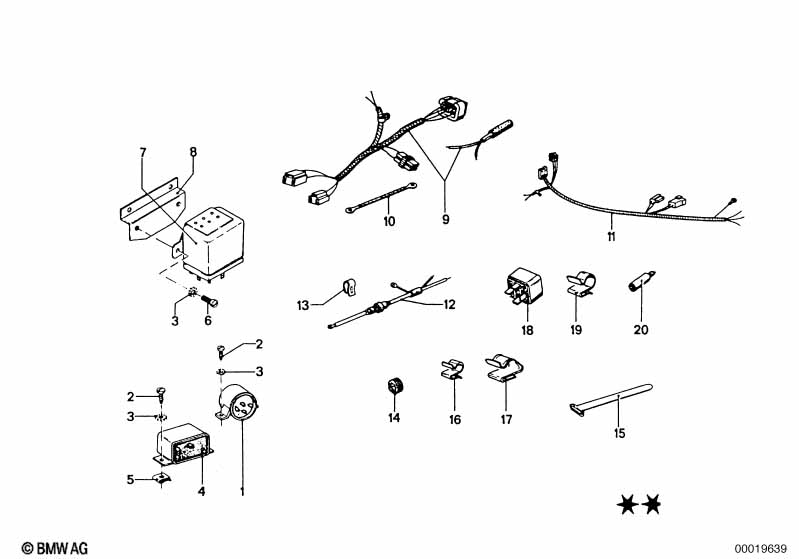

This Air cond.syst.-relais/switch/wiring set technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
| 03 | Tooth washer | A5,1 | 4 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Relay | 1 | 12/1968 | 11/1975 | 61311354841 | ENDED | Shop at ECS Tuning | |||
| 05 | Body nut | ST4,8-5 | 2 | 12/1968 | 11/1975 | 07129901652 | $0.25 | Shop at ECS Tuning | ||
| 06 | Fillister head screw | M5X10 | 2 | 12/1968 | 11/1975 | 07119907639 | $0.40 | Shop at ECS Tuning | ||
| 07 | Relay | 1 | 12/1968 | 11/1975 | 61311352232 | ENDED | Shop at ECS Tuning | |||
| 08 | Holder | 1 | 12/1968 | 11/1975 | 64501811919 | ENDED | Shop at ECS Tuning | |||
| 09 | Wiring for air conditioner | 1 | 04/1971 | 11/1975 | 61121354851 | ENDED | Shop at ECS Tuning | |||
| 10 | Wiring for air conditioner | 1 | 12/1968 | 11/1975 | 61121352426 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable | 1 | 12/1968 | 11/1975 | 61121811916 | ENDED | Shop at ECS Tuning | |||
| 12 | Wiring for air conditioner | 1 | 09/1971 | 11/1975 | 61121355050 | ENDED | Shop at ECS Tuning | |||
| 13 | Cable clamp | 1 | 61131351136 | ENDED | Shop at ECS Tuning | |||||
| 13 | Cable clamp | D=12MM | 6 | 12/1968 | 11/1975 | 61131355345 | $0.82 | ENDED | Shop at ECS Tuning | |
| 14 | Rubber grommet | 1 | 61138570132 | ENDED | Shop at ECS Tuning | |||||
| 14 | Rubber grommet | 1 | 02/1972 | 11/1975 | 63128071754 | $1.13 | Shop at ECS Tuning | |||
| 15 | Cable tie | L=292MM/B=4,8MM | 1 | 12/1968 | 11/1975 | 61131377134 | $0.77 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
