Additional heater for BMW 3 Series E46 320d (2005)

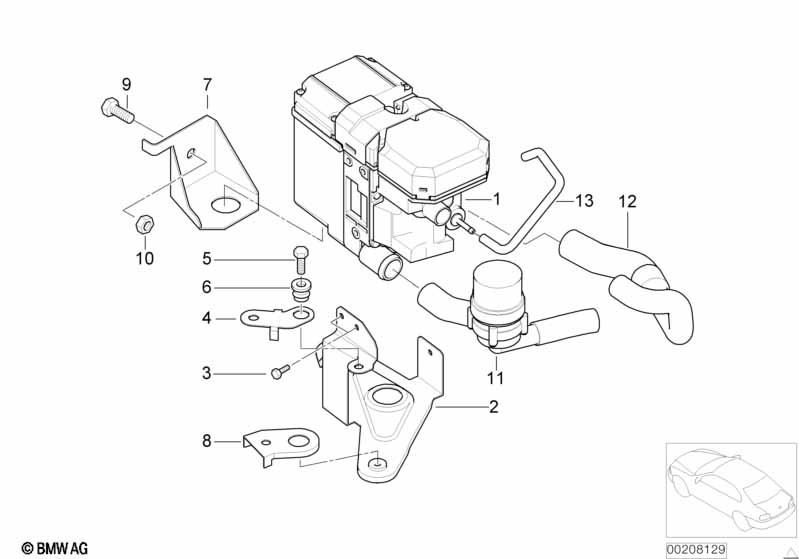

This Additional heater technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bracket f additional heater | 1 | 64128372837 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex bolt | 2 | 64128376447 | Shop at ECS Tuning | ||||||
| 04 | Shackle | 1 | 64128374542 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | M8X20-Z1-8.8 | 1 | 17111723673 | $0.63 | Shop at ECS Tuning | ||||
| 06 | Blind rivet nut, flat headed | M8 | 1 | 64128391361 | Shop at ECS Tuning | |||||
| 07 | Console | 1 | 64128374540 | Shop at ECS Tuning | ||||||
| 08 | Console | 1 | 64128374541 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex bolt | M8X20-Z1-8.8 | 2 | 17111723673 | $0.63 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Water pump f Independent heater | 1 | 64126918940 | Shop at ECS Tuning | ||||||
| 12 | Air hose | 1 | 64128370075 | Shop at ECS Tuning | ||||||
| 13 | Hose | 1 | 64218384182 | ENDED | Shop at ECS Tuning |
