Air conditioning for BMW 2500-3.3Li 3.0S (1977)

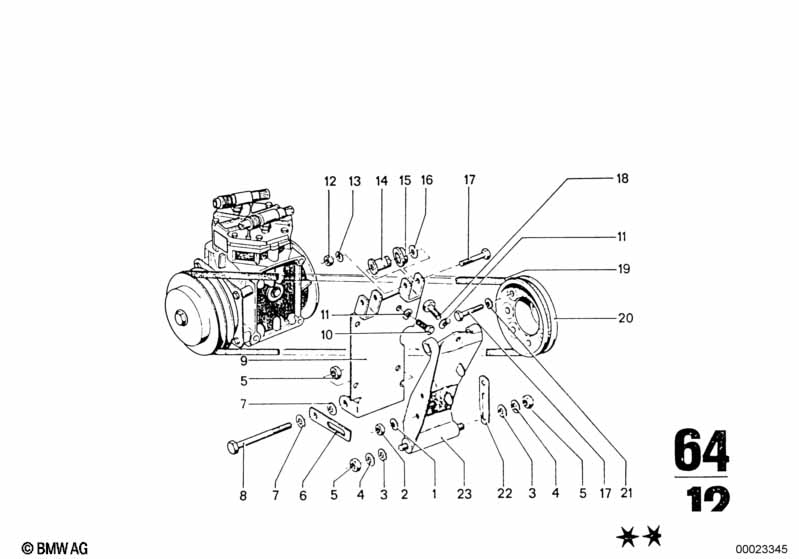

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Washer | 10-200HV-ZNNIV | 2 | 07119907114 | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Adjusting bar | 1 | 64518745208 | ENDED | Shop at ECS Tuning | |||||
| 07 | Washer | 1 | 31412000345 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X22-8.8-ZNS3 | 3 | 07119904040 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M10X130 | 1 | 07119912725 | ENDED | Shop at ECS Tuning | ||||
| 09 | Mounting plate | 1 | 64521253216 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hex bolt | 4 | 64521352231 | ENDED | Shop at ECS Tuning | |||||
| 11 | Wave washer | B10-ZNS3 | 4 | 07119904463 | Shop at ECS Tuning | |||||
| 12 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 13 | Spring washer | B8 | 2 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Spacer bush | 2 | 12311268434 | $12.37 | Shop at ECS Tuning | |||||
| 15 | Bush | 2 | 11640743186 | $2.91 | ENDED | Shop at ECS Tuning | ||||
| 16 | Washer | 1 | 64521255139 | $1.89 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M8X45-8.8-ZNS3 | 10 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M10X28 | 1 | 07119913836 | $0.63 | Shop at ECS Tuning | ||||
| 19 | Vacuum hose | 2X4 | 1 | 64111368684 | $1.77 | Shop at ECS Tuning | ||||
| 20 | Pulley | 1 | 64521250633 | ENDED | Shop at ECS Tuning | |||||
| 21 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 22 | Adjusting bar | 1 | 64521257093 | ENDED | Shop at ECS Tuning | |||||
| 23 | Carrier | 1 | 64521253211 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
