Air conditioning for BMW 2500-3.3Li 3.0S (1977)

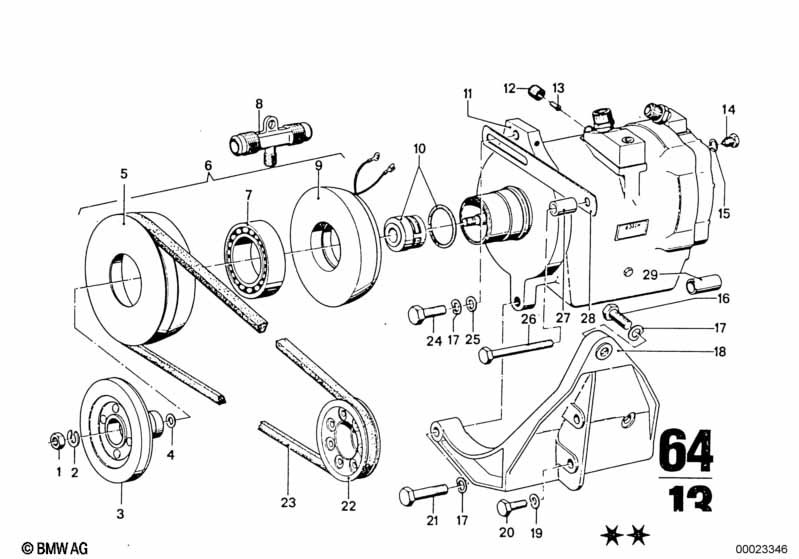

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 02 | Spring washer | B8 | 1 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Shim | 1 | 64521354980 | $5.47 | ENDED | Shop at ECS Tuning | ||||
| 08 | Valve | 1 | 64531356549 | $29.44 | ENDED | Shop at ECS Tuning | ||||
| 10 | sealing | 1 | 64521356345 | $75.10 | ENDED | Shop at ECS Tuning | ||||
| 11 | RP A/C compressor | 1 | 64521365073 | $884.49 | ENDED | Shop at ECS Tuning | ||||
| 12 | Cap | 1 | 64531363569 | $2.82 | ENDED | Shop at ECS Tuning | ||||
| 13 | Valve | 1 | 64521354981 | $5.19 | Shop at ECS Tuning | |||||
| 14 | Valve | 1 | 64521354982 | $70.68 | Shop at ECS Tuning | |||||
| 15 | Gasket | 1 | 64521356348 | $26.40 | Shop at ECS Tuning | |||||
| 16 | Hex bolt | M10X28 | 1 | 07119913836 | $0.63 | Shop at ECS Tuning | ||||
| 17 | Wave washer | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 18 | Climate compressor supporting bracket | 1 | 64521272420 | $165.29 | ENDED | Shop at ECS Tuning | ||||
| 19 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M8X22-8.8-ZNS3 | 3 | 07119904040 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M10X45 | 2 | 07119913855 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 22 | Pulley | 1 | 64521250633 | ENDED | Shop at ECS Tuning | |||||
| 23 | Fan belt | 1 | 64521711058 | Shop at ECS Tuning | ||||||
| 24 | Hex bolt | M10 X 1,25 X 25 | 1 | 07119911671 | ENDED | Shop at ECS Tuning | ||||
| 25 | Washer | 10,5X25X3,5MM | 1 | 64521350824 | $2.67 | Shop at ECS Tuning | ||||
| 27 | Base | 1 | 64521255366 | ENDED | Shop at ECS Tuning | |||||
| 28 | Adjusting bar | 1 | 64521261304 | $4.37 | Shop at ECS Tuning | |||||
| 29 | Pipe | 1 | 64521261305 | $5.56 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
