Air conditioning for BMW 2500-3.3Li 2800 (1975)

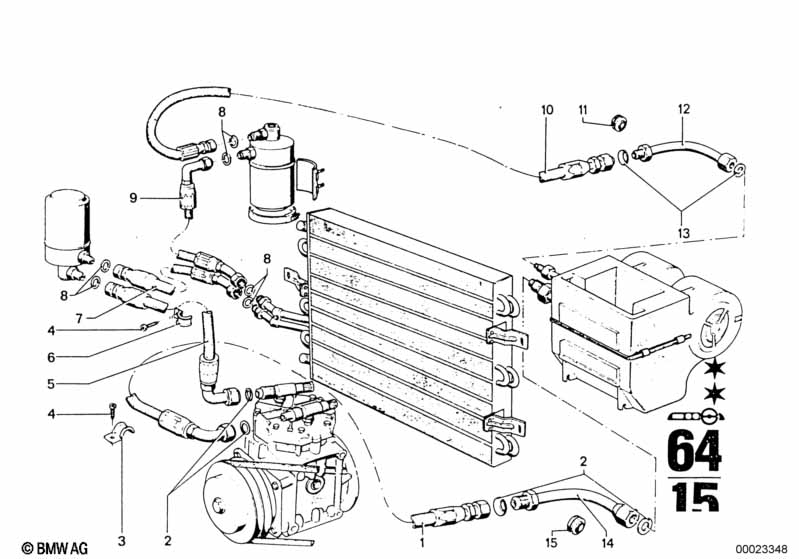

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Special accessories | ||||||||||
| 01 | Hose line | 1 | 64531353271 | ENDED | Shop at ECS Tuning | |||||
| 02 | Conical ring | D=20MM | 4 | 64531350491 | $1.23 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | 1 | 64531350939 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fillister head self-tapping screw | ST5,5X13 | 2 | 07119907770 | $0.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Hose | 1 | 64531352048 | ENDED | Shop at ECS Tuning | |||||
| 06 | Hose clamp | 3 | 64531352112 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hose line | 1 | 64531353268 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gasket | 3/4" | 6 | 64531350489 | $3.08 | Shop at ECS Tuning | ||||
| 09 | Hose line | 1 | 64531353269 | ENDED | Shop at ECS Tuning | |||||
| 10 | Hose line | 1 | 64531353270 | ENDED | Shop at ECS Tuning | |||||
| 11 | Rubber grommet | 1 | 64214774144 | $1.46 | Shop at ECS Tuning | |||||
| 12 | Pipe | 1 | 64531353229 | ENDED | Shop at ECS Tuning | |||||
| 13 | Gasket | 5/8" | 2 | 64531350490 | $3.08 | ENDED | Shop at ECS Tuning | |||
| 14 | Pipe | 1 | 64531353249 | ENDED | Shop at ECS Tuning | |||||
| 15 | Grommet | 1 | 64214774143 | ENDED | Shop at ECS Tuning | |||||
