Air conditioning for BMW 2500-3.3Li 3.0Si (1977)

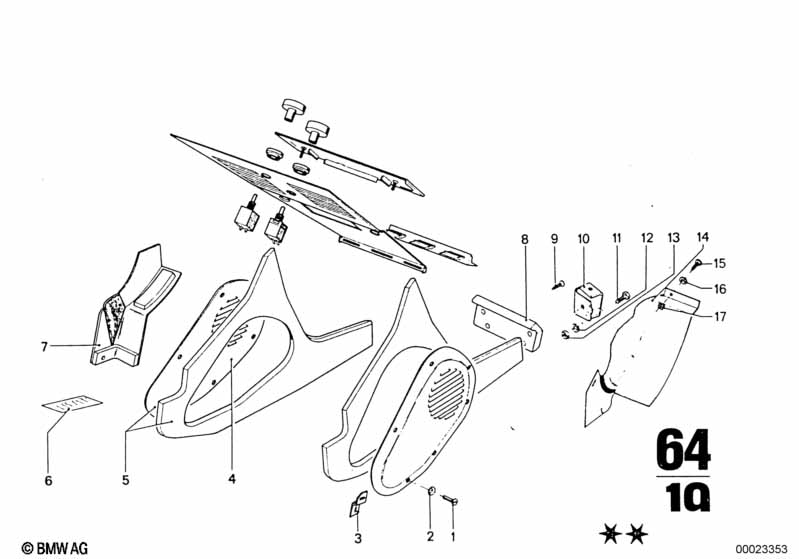

This Air conditioning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Csk.fillister head srew | AM4X15 | 4 | 07119901713 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hollow washer | 4 | 51451804974 | $2.62 | Shop at ECS Tuning | |||||
| 03 | Bracket | 1 | 51161805785 | ENDED | Shop at ECS Tuning | |||||
| 06 | Label "air condition" | 1275G | 1 | 64501380984 | $6.67 | ENDED | Shop at ECS Tuning | |||
| 09 | Screw | 2,7 X 15 | 12 | 07119916491 | ENDED | Shop at ECS Tuning | ||||
| 10 | Support left | 1 | 51161805991 | ENDED | Shop at ECS Tuning | |||||
| 10 | Support right | 1 | 51161805992 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M5X12 8.8 POL. | 2 | 07119913227 | $4.03 | ENDED | Shop at ECS Tuning | |||
| 12 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M5-8-ZNNIV SI | 2 | 07119905729 | Shop at ECS Tuning | |||||
| 14 | Cover | 1 | 51451817326 | ENDED | Shop at ECS Tuning | |||||
| 15 | Recessed oval head sheet-metal screw | ST4,2X32 | 2 | 07119902475 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 16 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 17 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning |
